Unit CamS3 Wi-Fi Camera 5MP

Description

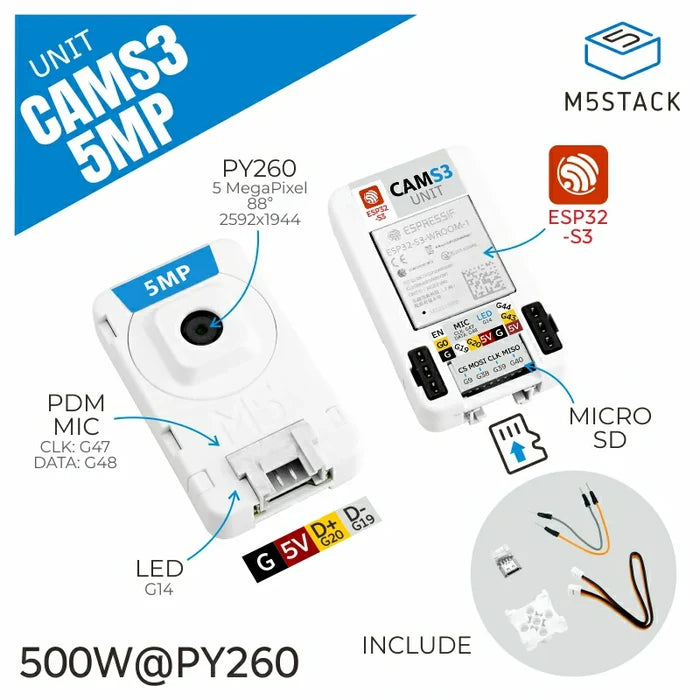

Unit CamS3-5MP is a streamlined camera unit based on the ESP32-S3 module that supports image transmission to the cloud via Wi-Fi. Equipped with 8 MB PSRAM and 16 MB flash, it features a customized 5 MP PY260 camera with an 88° DFoV, capable of shooting photos at up to 2592 × 1944 resolution. The built-in microSD card slot can be used to store images and other data. A built-in PDM microphone enables audio recording. The bottom HY2.0-4P port brings out the ESP32-S3 internal D+/D- pins, allowing firmware updates or USB serial communication through a connected Grove to USB-C module. Two onboard 1 × 3 headers provide access to the ESP32-S3 download port. The factory firmware offers complete shooting and EzData upload capability, enabling free remote image monitoring with simple configuration. This product is suitable for applications such as remote monitoring, time-lapse photography, and industrial automation.

Features

• Based on ESP32-S3-WROOM-1-N16R8 module with Wi-Fi support
• Wi-Fi cloud EzData or serial transmission of image data
• Integrated 5 MP PY260 camera
• Built-in microSD card slot
• Built-in PDM microphone for audio recording
• Built-in programmable indicator LED

Includes

• 1 × Unit CamS3-5MP
• 1 × Grove2USB-C
• 2 × Male-to-Male Jumper Wires
• 1 × HY2.0-4P Grove Cable (20 cm)
• 1 × LEGO Adapter

Applications

• Remote monitoring
• Time-lapse photography
• Industrial automation

Specifications
