SparkFun Qwiic Shield for Teensy - Extended

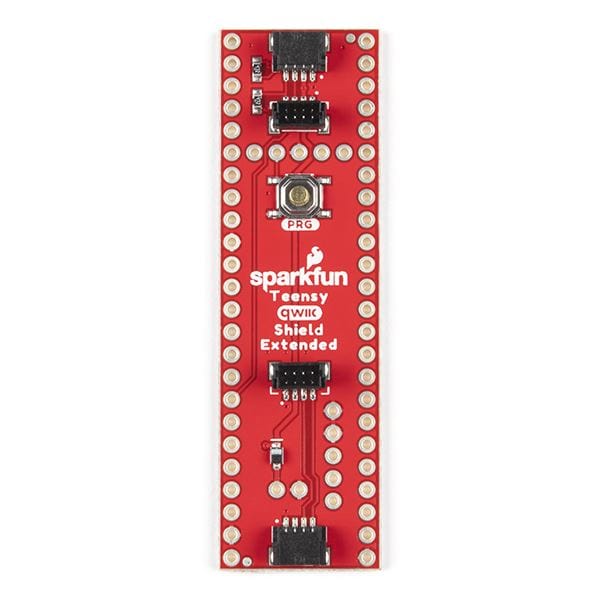

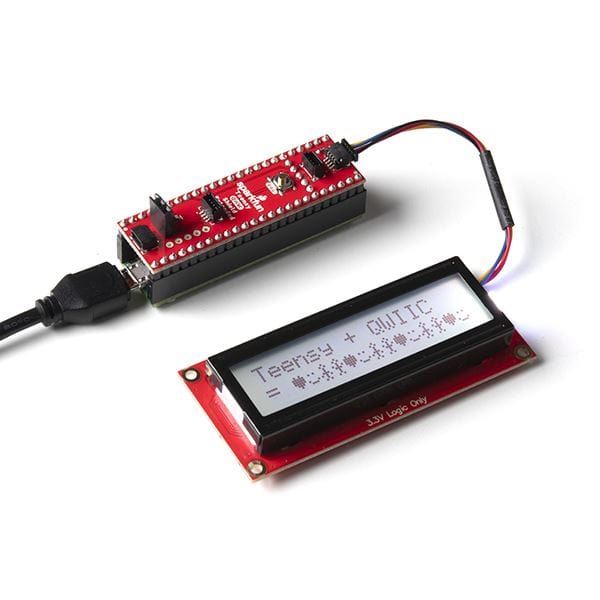

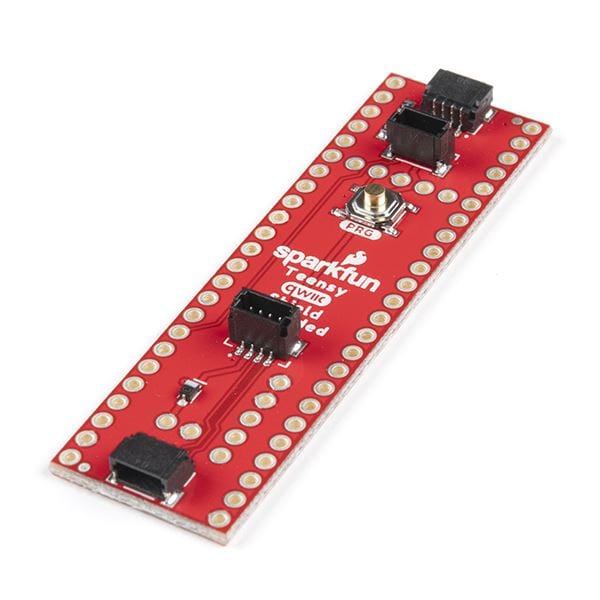

The SparkFun Extended Qwiic Shield for Teensy provides you with a quick and easy way to enter into SparkFun's Qwiic ecosystem with your Teensy boards. This shield is sized to work with the footprint of Teensy 4.1, Teensy 3.6, and Teensy 3.5. This shield connects the I²C bus (GND, 3.3V, SDA, and SCL) on your Teensy to four SparkFun Qwiic connectors (two horizontally and two vertically mounted). The Qwiic ecosystem allows for easy daisy-chaining so, as long as your devices are on different addresses, you can connect as many Qwiic devices as you'd like.

We have also added a "PROG" button on this shield that is electrically parallel with the "PROG" button on the Teensy Boards so you can choose to use either the button on your Teensy or the button on the shield to put your Teensy into Programming mode.

The Qwiic Shield for Teensy comes with two 24-pin and one 5-pin headers and will need to solder the headers to the shield and, if necessary, to your Teensy board. Take care to match the markings on the Qwiic Shield to the appropriate pins on your Teensy to avoid possibly damaging your boards.

Get Started with the Sparkfun Qwiic Shield for Teensy Hookup Guide

Package Contents

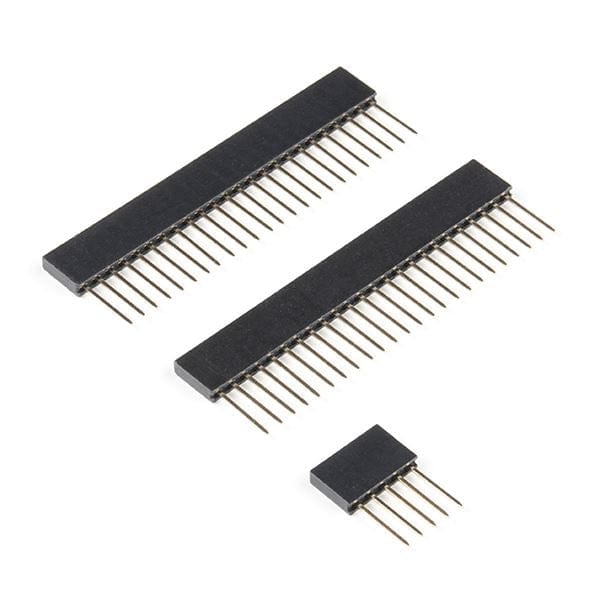

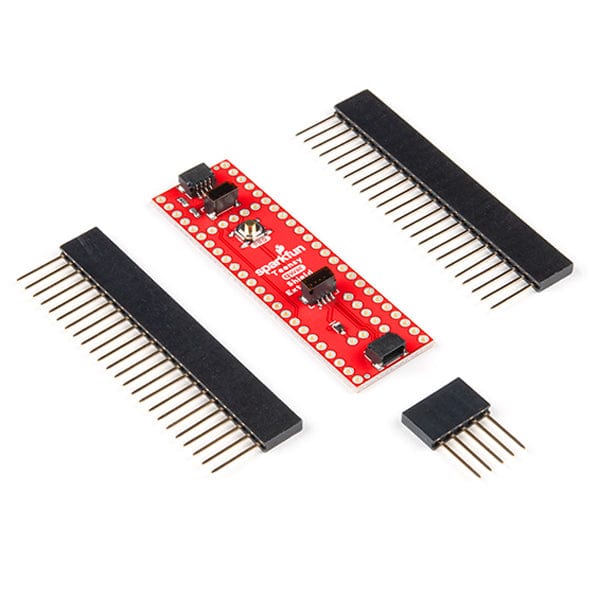

• SparkFun Qwiic Shield for Teensy - Extended
• 2x 24-pin headers
• 1x 5 pin header

Features

• Teensy 4.1, 3.6, or 3.5 Footprint Compatible
• 4x Qwiic Connection Ports
• "PROG" Button w/ satisfying tactile feedback

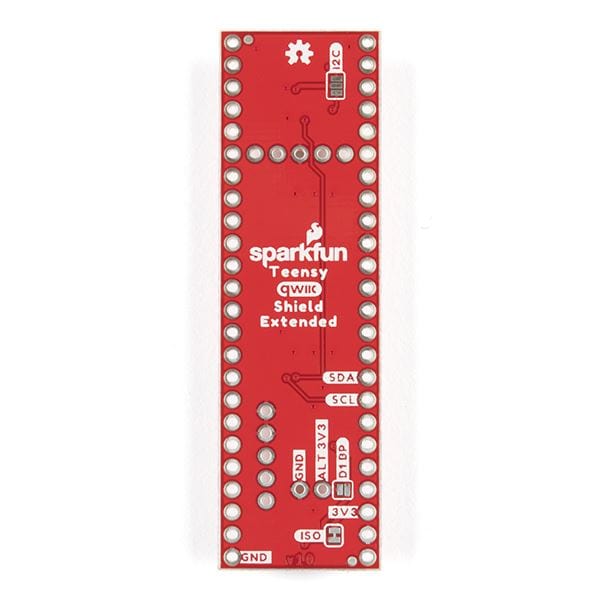

• I²C Jumper
• 3.3V and GND Buses

Resources

• Schematic
• Eagle Files

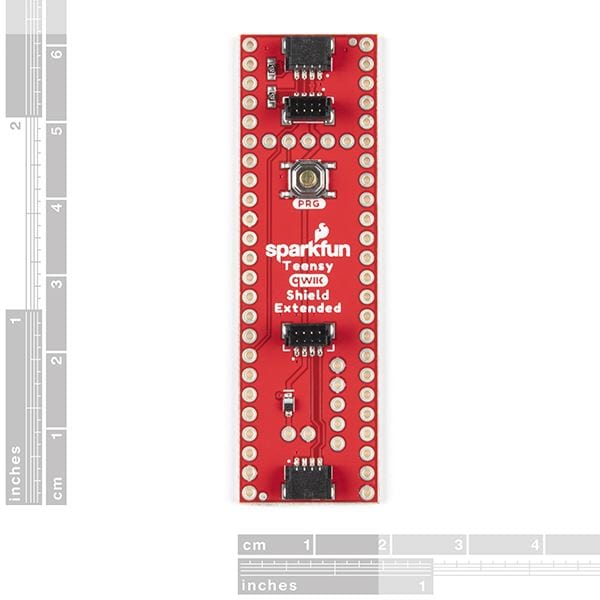

• Board Dimensions
• Hookup Guide
• Qwiic Info Page
• GitHub Hardware Repo
