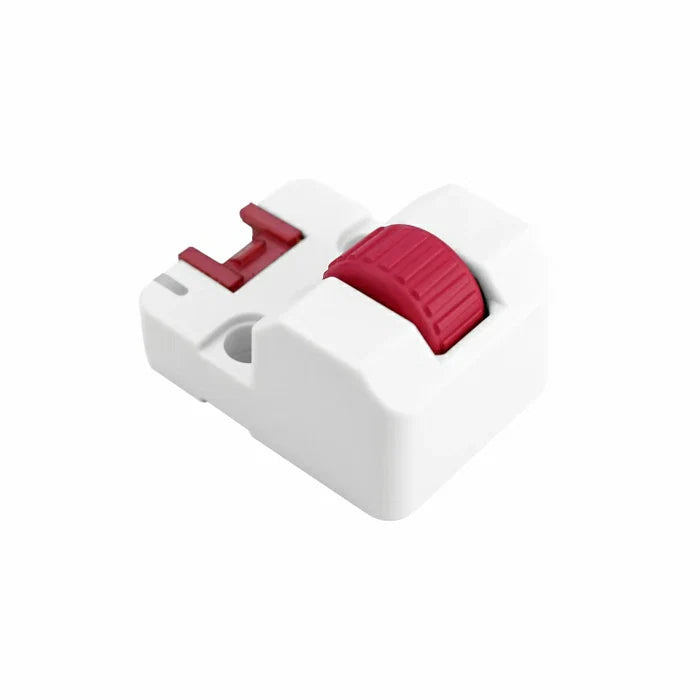

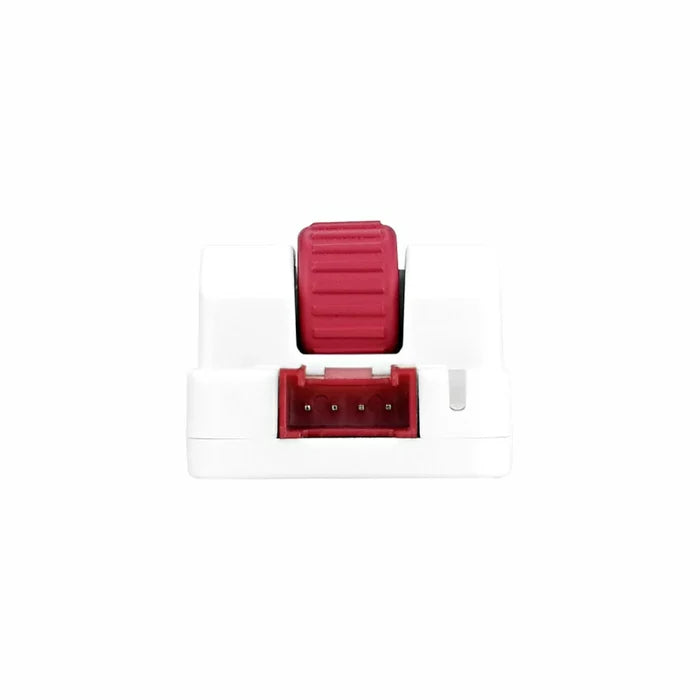

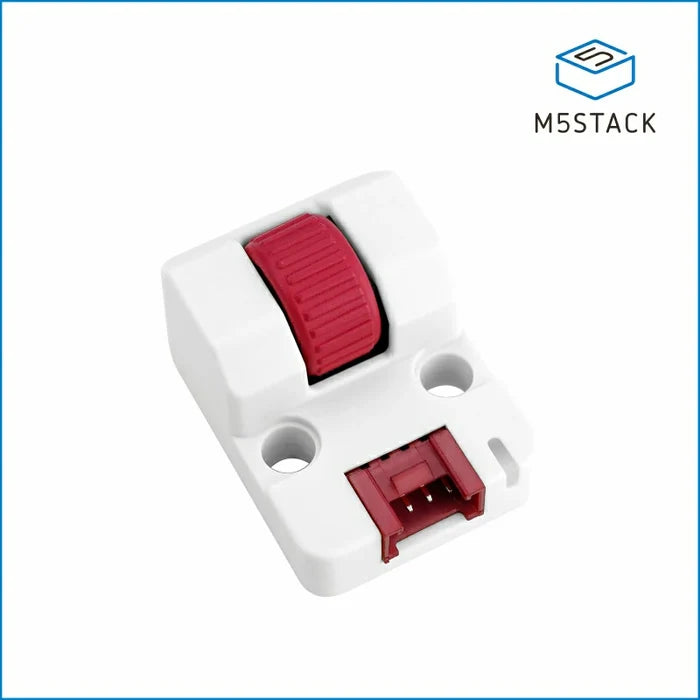

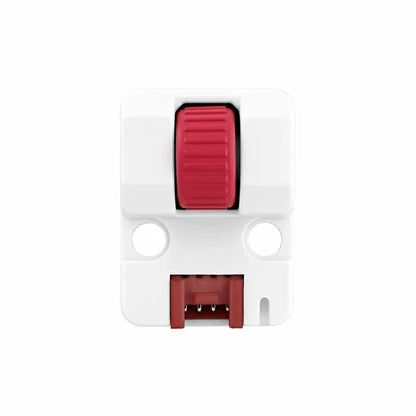

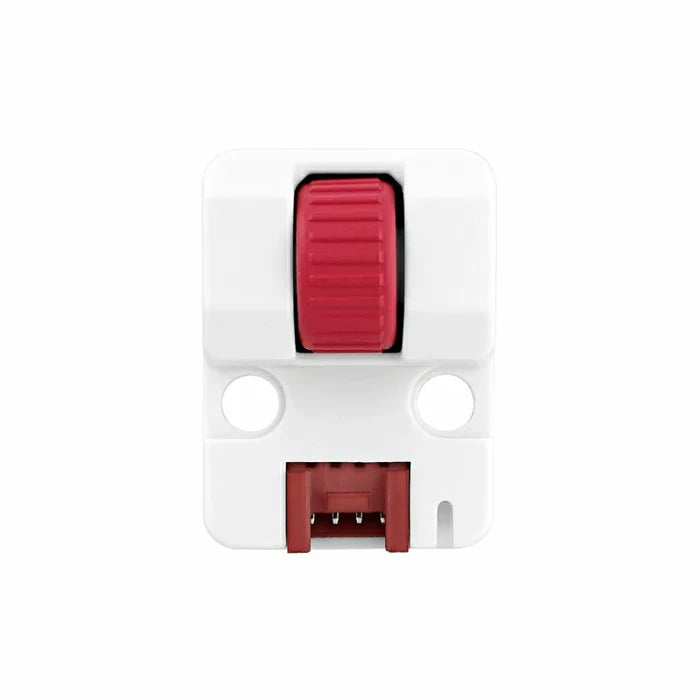

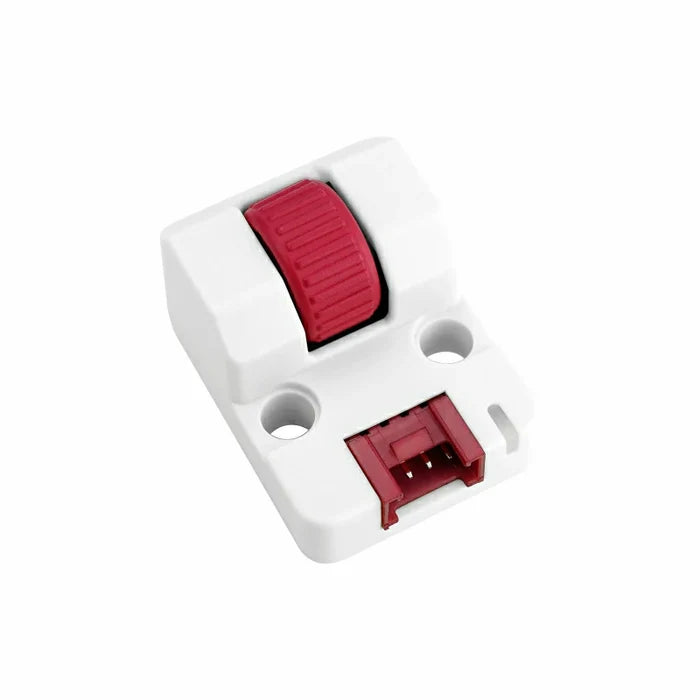

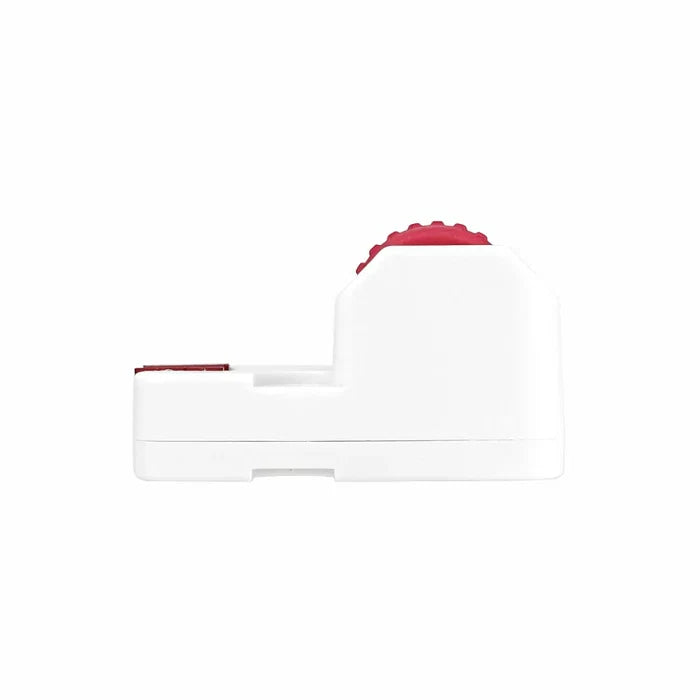

Scroll Unit with Hollow Shaft Encoder (EC10E1220501)

$2.88

$2.88 ~~$3.95~~

SAVE 27% Sold out

Description

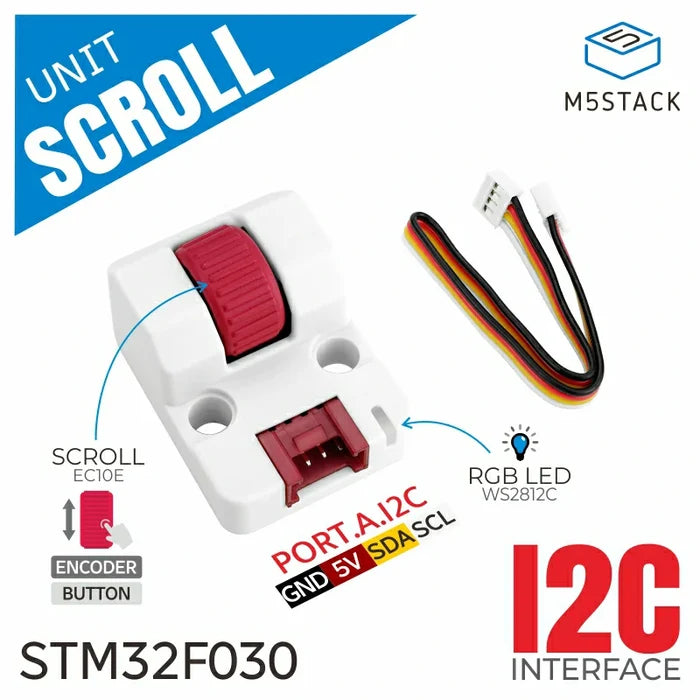

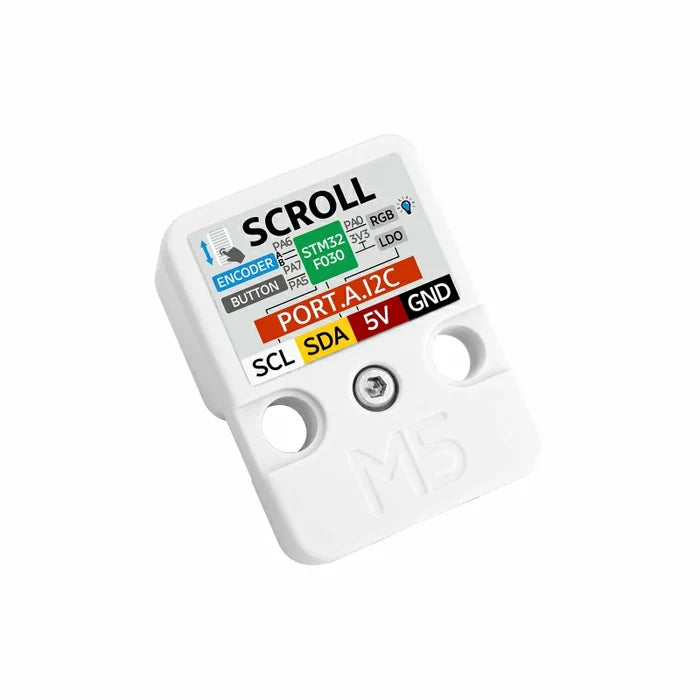

Unit Scroll is a wheel-shaped rotary encoder expansion unit. It integrates a 12-bit pulse through-shaft encoder, button input, and a WS2812C programmable RGB LED. The built-in STM32F030 controller includes firmware for encoder pulse signal acquisition, allowing users to directly obtain encoder values through I2C, greatly simplifying the operation process. This unit is suitable for control scenarios such as scale value control and volume adjustment.

Features

Based on STM32 microcontroller
AB phase output (12 pulses/rotation)
Built-in button
Multi-color WS2812C RGB LED indicator
I2C communication interface

Includes

1 x Unit Scroll
1 x HY2.0-4P Grove cable (20cm)

Applications

Industrial automation
Smart home
Robotics
Human-machine interaction

Specifications

Specification	Parameter
MCU	STM32F030F4P6@32-bit ARM Cortex-M0 processor
Rotary Encoder	EC10E
Rotary Encoder Output	AB two-phase quadrature output
Rotary Encoder Pulses	12 pulses/rotation
RGB LED	1x WS2812C
Button	1x button
I2C Communication Address	0x40
Operating Temperature	0 ~ 40°C
Product Size	32.0 x 24.0 x 18.9mm
Product Weight	7.5g
Package Size	138.0 x 93.0 x 19.9mm
Gross Weight	12.7g

Product Comparison

Product Compare	Unit Scroll	Unit Encoder	Unit 8Encoder
Form	Wheel	Knob	Knob
Channels	1	1	8
Resolution	12 pulses/rotation	30 pulses/rotation	15 pulses/rotation
Position	AB Quadrature Output	AB Quadrature Output	AB Quadrature Output
Communication Mode	I2C (0x40)	I2C (0x40)	I2C (0x41)
