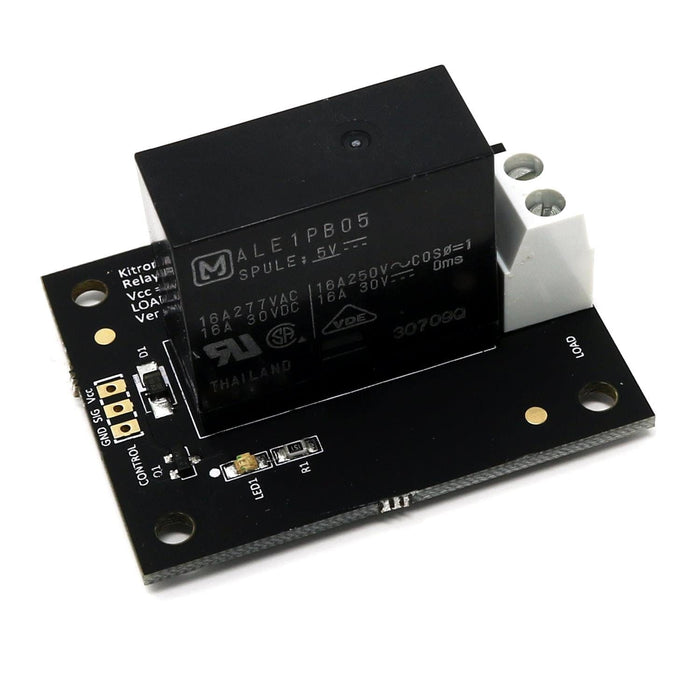

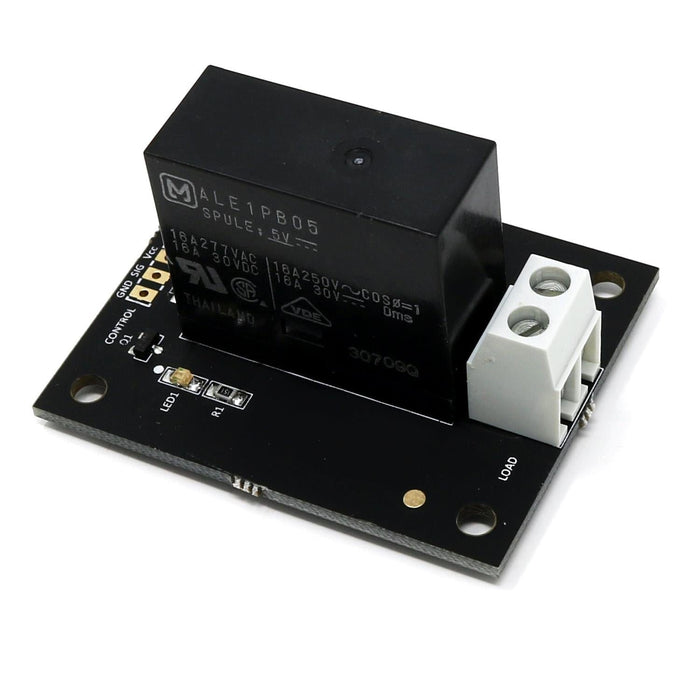

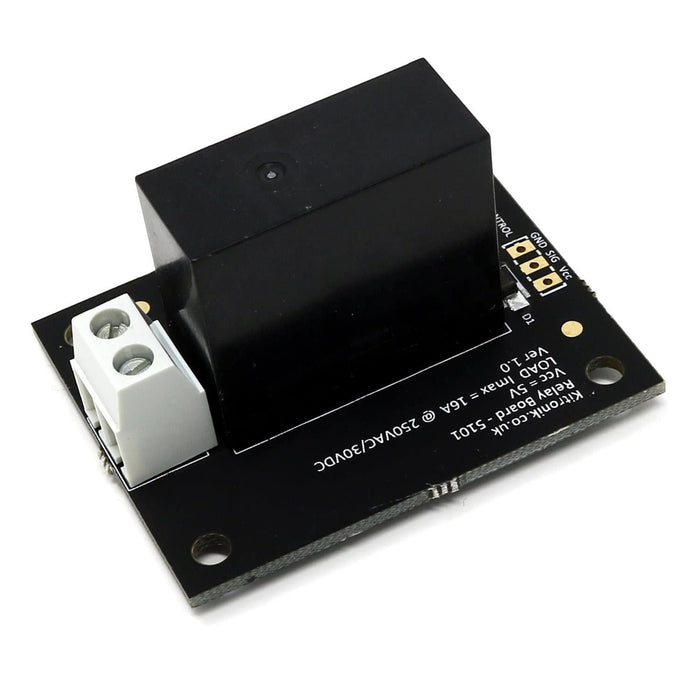

Relay Control Breakout Board [Discontinued]

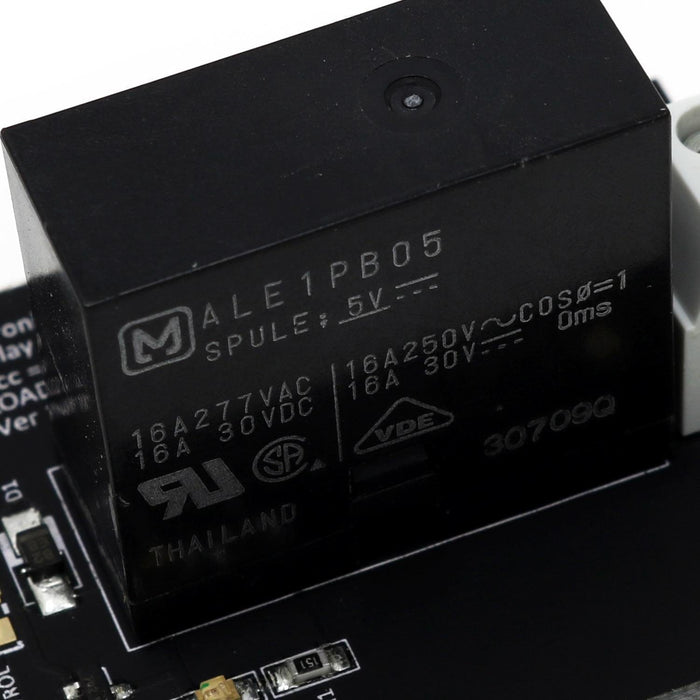

This breakout board allows a low power logic level device running at 5V to operate a relay. The relay can switch up to 16A 250VAC or 16A 30VDC. This lets your low power microprocessor control big, power-hungry devices!

To use the board you simply connect a constant 5V supply along with a signal connection. When the signal connection is taken high (over 2.1V) the relay and onboard LED indicator turn on. At this point, the relay which is normally open becomes a closed circuit.

Caution: This breakout board can be used with mains electricity, however we don't recommend it and should only be undertaken by suitably professionally qualified people. Stick to battery-powered devices, robots and similar!

Features

• High current output drive (16A)
• LED indicates when the relay is operating

Contents

• 1 x Relay Breakout Board

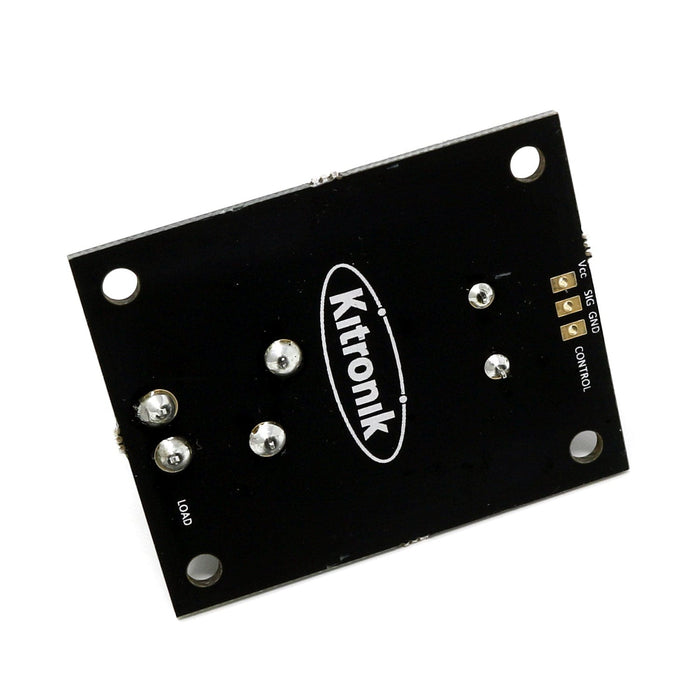

Connections

• GND - Ground / zero volts
• Vcc - 5V power input
• SIG - The signal input, 2.1V turns the relay on, 0V turns it off
• LOAD - The outputs of the relay, when the relay is on these pins are connected together

Resources

• Relay breakout guide (PDF)
• Relay example code (zip file)
• Dimensions:
  • Length: 48mm
  • Width: 38mm
  • Height: 26.5mm
