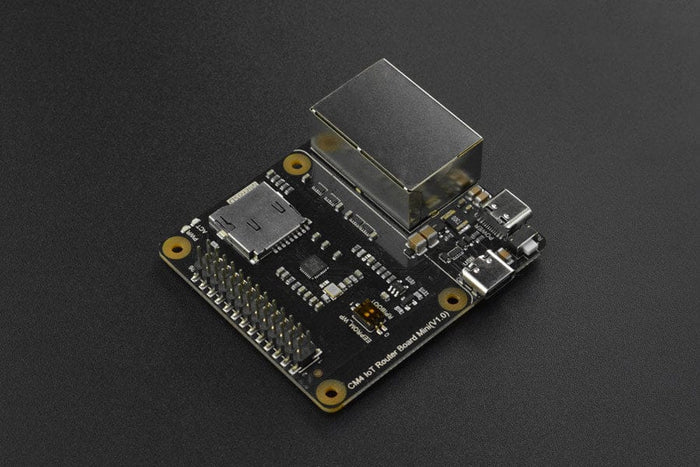

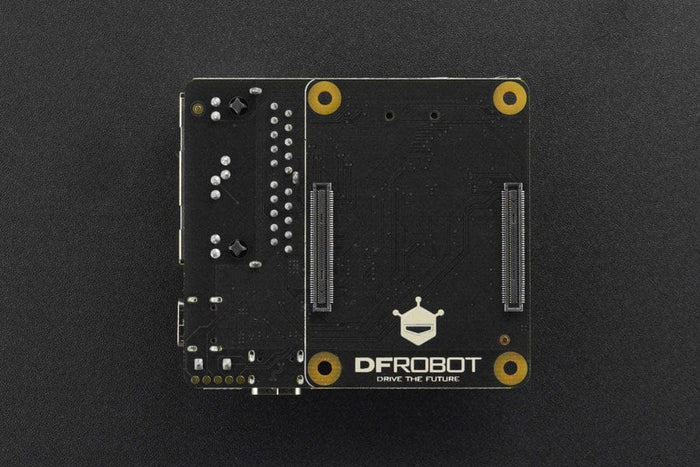

Raspberry Pi Compute Module 4 IoT Router Carrier Board Mini

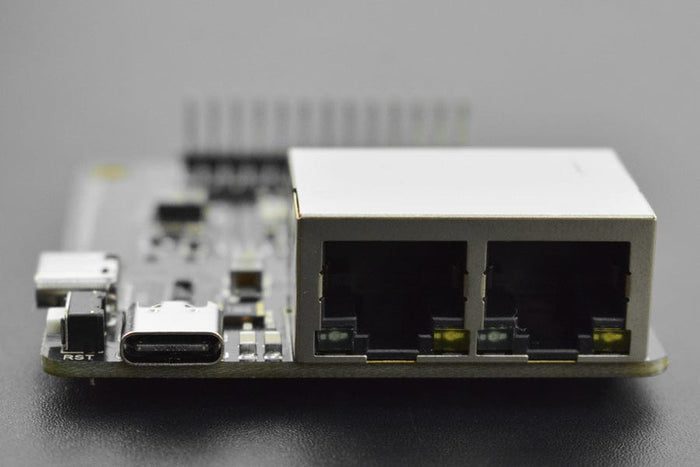

The Compute Module 4 IoT Router Carrier Board Mini is an internet expansion board based on the Raspberry Pi Compute Module 4. When connecting with a gigabit network card via PCle, it brings Raspberry Pi CM4 two full-speed gigabit network ports and offers better performance, lower CPU usage and higher stability for a long time work compared with a USB network card.

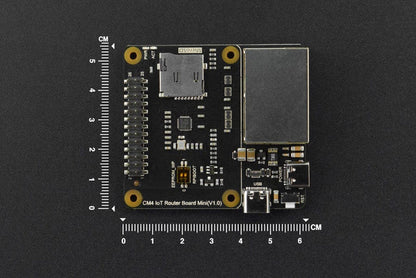

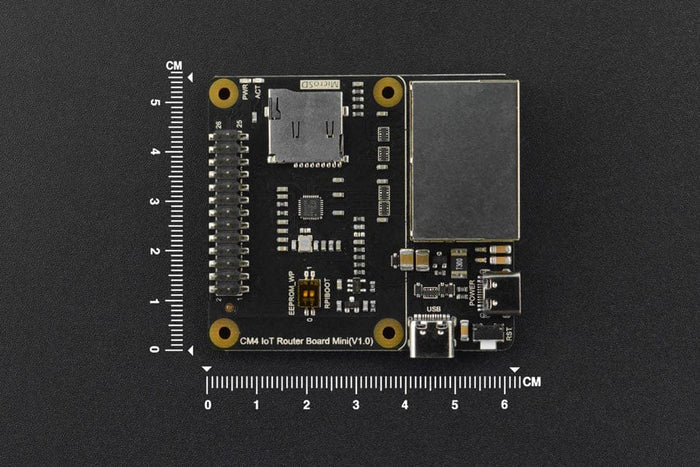

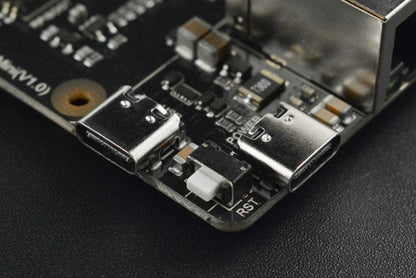

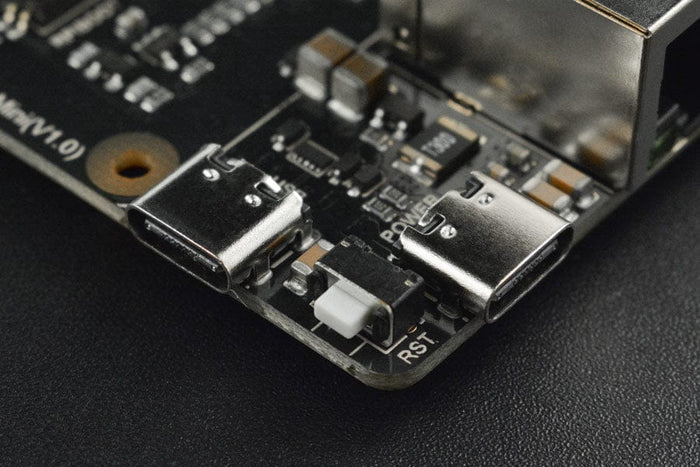

With a mini size of 55mm x 62mm, the board still retains the characteristic GPIO pin header of Raspberry Pi, making it applicable for connecting other actuators, sensors and smart cooling fans. There is also a USB2.0 interface that can be connected to mobile hard drives, printers, WiFi modules, LTF modules and more.

The Compute Module 4 IoT Router Carrier Board Mini now provides OpenWRT open-source router system. After a simple setup, it can be used as a router. It is also compatible with Raspberry OS, Ubuntu Server and other Raspberry Pi systems.

The powerful performance of BCM2711 4 core 1.5GHz Cortex-A72 and the rich software support in the Raspberry Pi community make this board a solid foundation for building high-performance gateways, smart routers, and home IoT platforms. It can also be connected to peripherals and used as a mini-NAS, wireless network bridge, or LTE Internet terminal.

A matching acrylic case is now available!

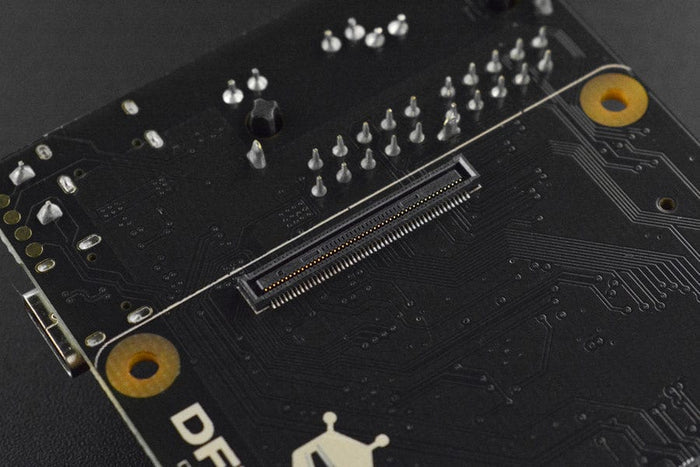

The board-socket of CM4 is fragile, please align the direction and then press it down. It is recommended not to repeatedly plug and unplug the CM4 module.

Make sure the CM4 installation direction is correct before powering up.

Note: The CM4 Compute Module is NOT included.
