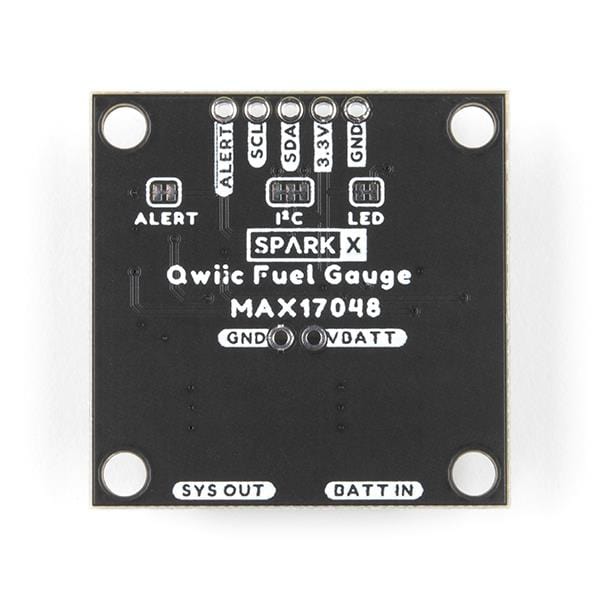

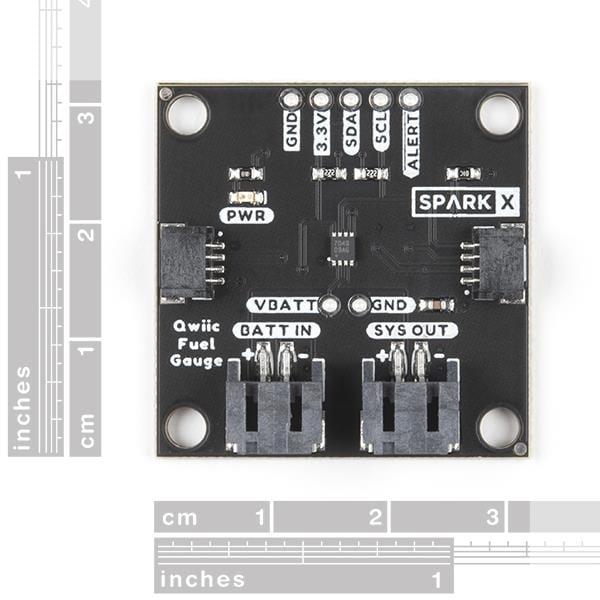

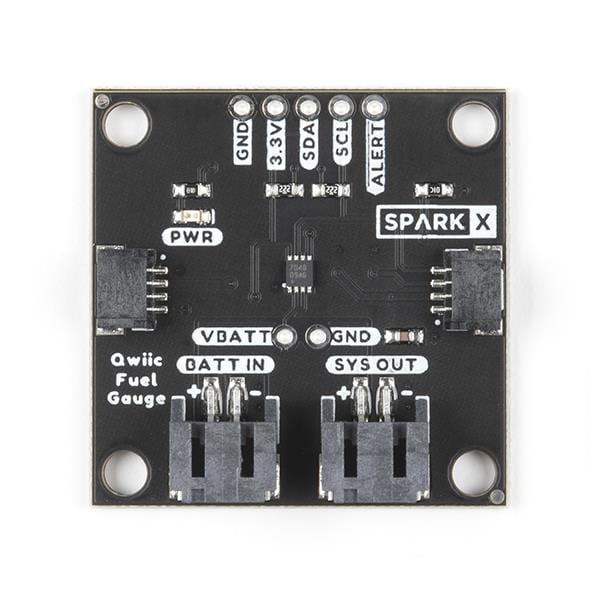

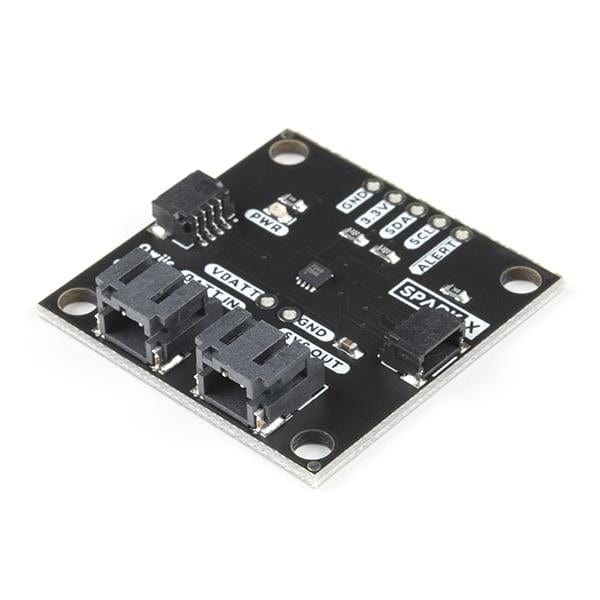

Qwiic Fuel Gauge - MAX17048 [Discontinued]

Experimental Product: SparkX products are rapidly produced to bring you the most cutting edge technology as it becomes available. These products are tested but come with no guarantees. Head on over to the SparkFun forum for support or to ask a question.

Based on the MAX17048, the Qwiic Fuel Gauge is perfect for monitoring your single-cell LiPo.

While the MAX17048 provides pack voltage, it really shines with its Statement of Charge (SOC). 3.83V is ok to know, but knowing your battery is at 73% capacity is considerably better.

This is not a 'take the LiPo voltage curve and hack it into little voltage pieces' type of IC. The MAX17048 has a sophisticated algorithm that constantly monitors the pack giving much more accurate readings than a simple ADC.

We've also written a fully featured Arduino library making interfacing as easy as a lipo.getSOC() call away.

The SparkFun Qwiic Connect System is an ecosystem of I²C sensors, actuators, shields and cables that make prototyping faster and less prone to error. All Qwiic-enabled boards use a common 1mm pitch, 4-pin JST connector. This reduces the amount of required PCB space, and polarized connections mean you can’t hook it up wrong.

Documents

• Schematic
• MAX17048 Datasheet
• Hardware Repo
• Eagle Files
• MAX1704x Fuel Gauge Arduino Library
