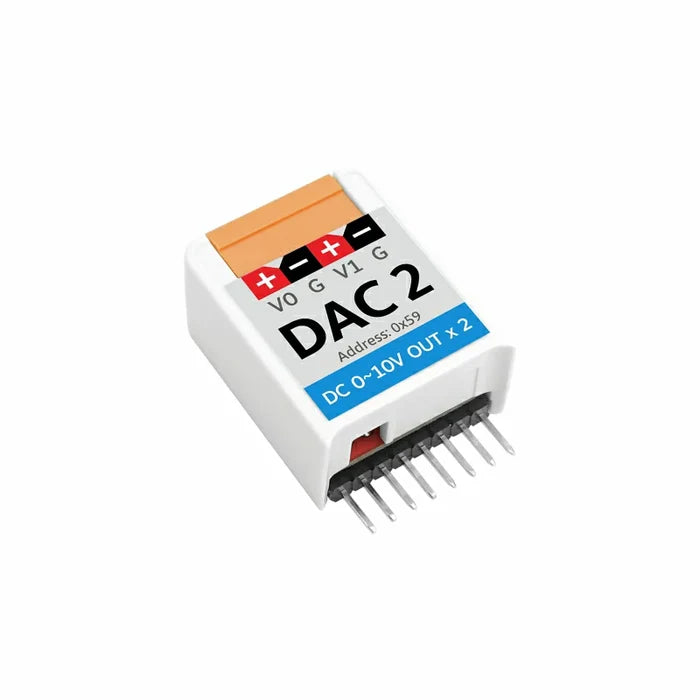

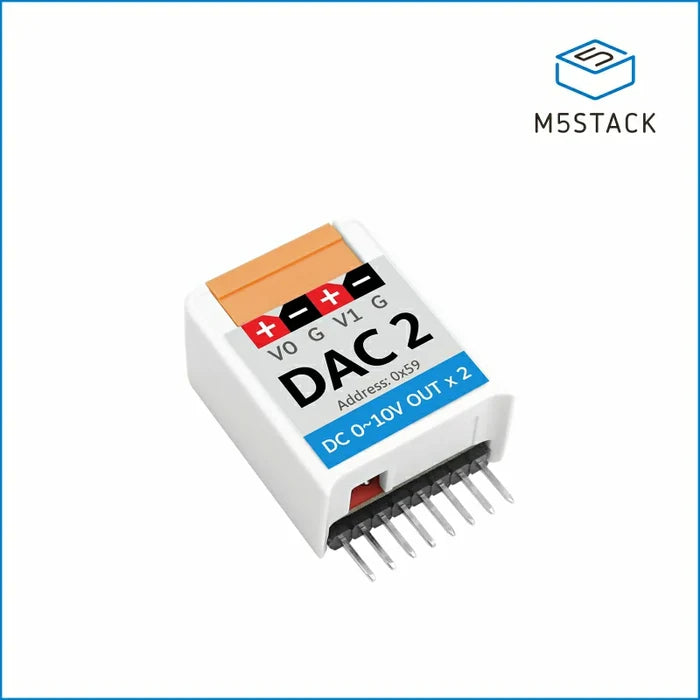

M5StickC DAC 2 Hat (GP8413)

Description

Hat DAC2 is an I2C digital-to-analog signal conversion unit designed for the StickC series controllers. Using the GP8413 solution, this chip can linearly convert a 15-bit digital quantity into two independent 0–5V / 0–10V analog voltages with an output voltage error of 0.2% and linearity of 0.01%. For scalability, the circuit design allows selection via three hardware address pins (A2/A1/A0). In terms of safety, the device supports output short-circuit protection — when the output pin is shorted to ground, it automatically enters protection mode and stops output. It is suitable for general signal conversion, motor speed control, LED dimming, inverters, power supplies, and industrial analog signal isolation applications.

Features

• Compatible with StickC / StickC PLUS / StickC PLUS2

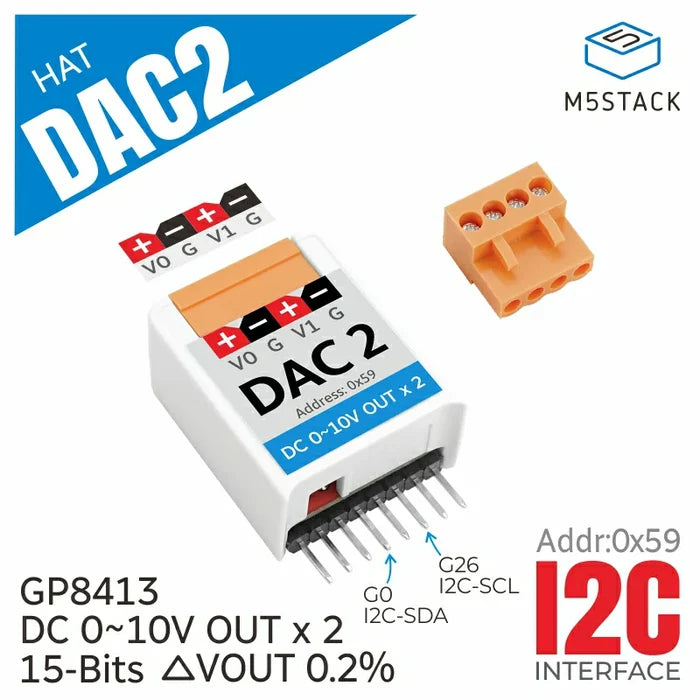

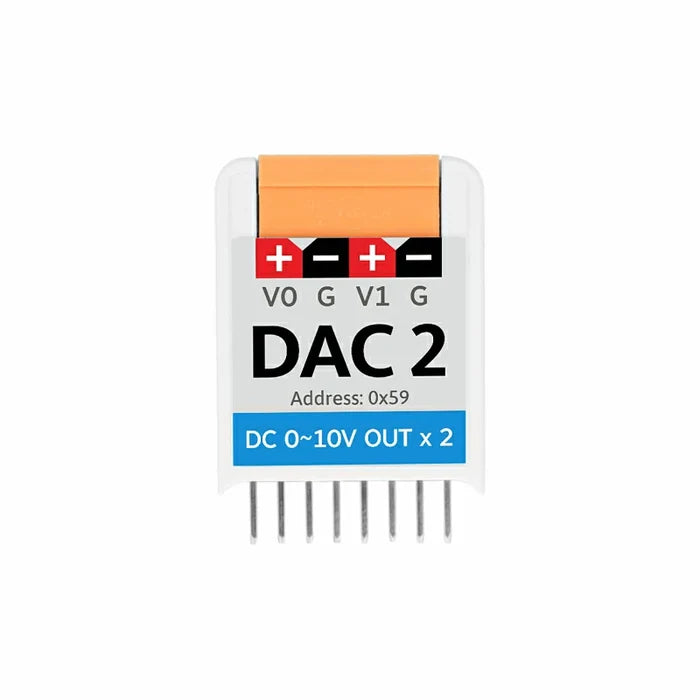

• I2C communication (default address 0x59)
• Supports multi-channel parallel connection
• Short-circuit protection
• High precision, low error

Includes

• 1 x Hat DAC2

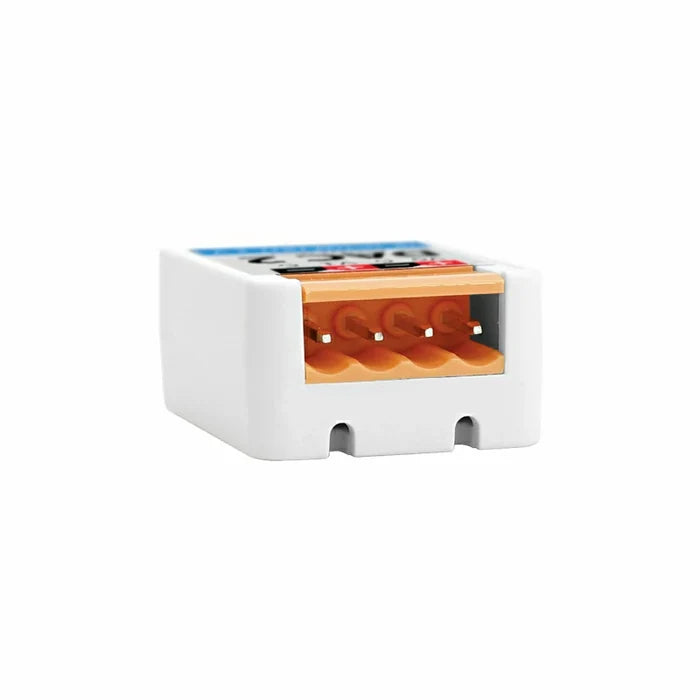

• 1 x HT3.96-4P Terminal
• 1 x Sticker

Applications

• General signal conversion
• Motor speed control, LED dimming
• Inverters, power supplies
• Industrial analog signal isolation

Specifications

Specification	Parameter

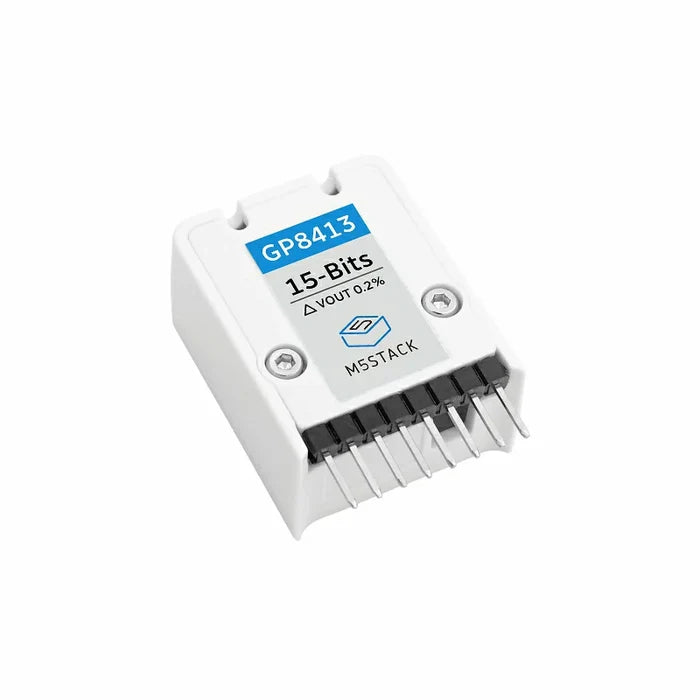

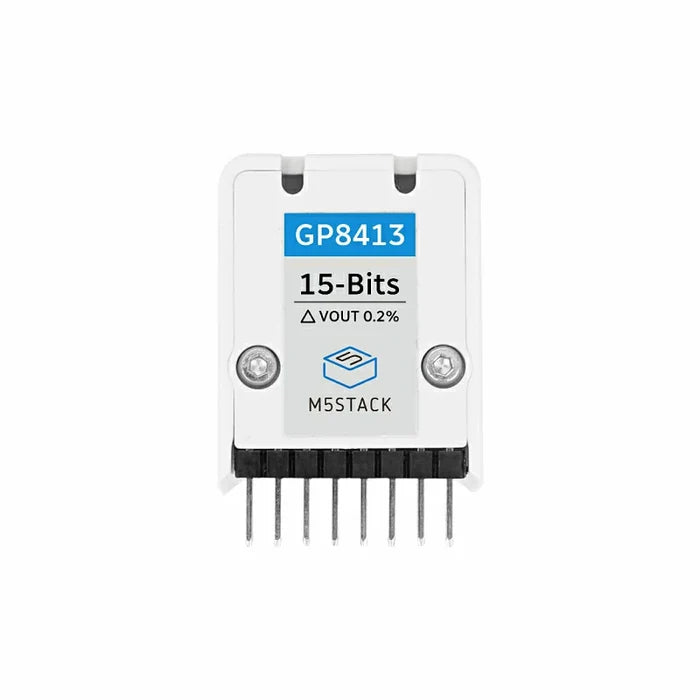

DAC Chip	GP8413
Resolution	15-bit
Communication Interface	I2C Communication @0x58 ~ 0x65, Default 0x59
Max Output Voltage	10V
Output Voltage Error	<0.2%
Output Voltage Linearity Error	0.01%
Operating Temperature	0–40°C

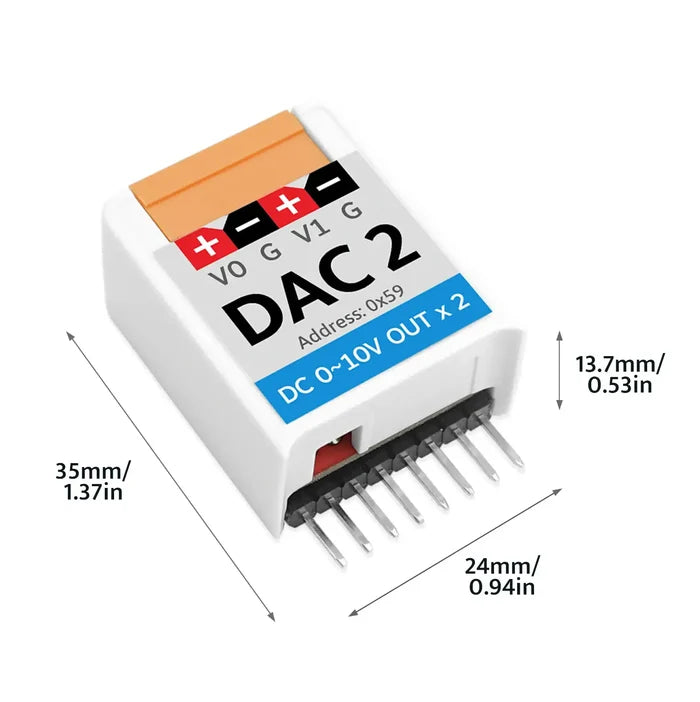

Product Size	35.0 x 24.0 x 13.7mm
Product Weight	6.7g
Package Size	136.0 x 92.0 x 13.7mm
Gross Weight	15.0g
