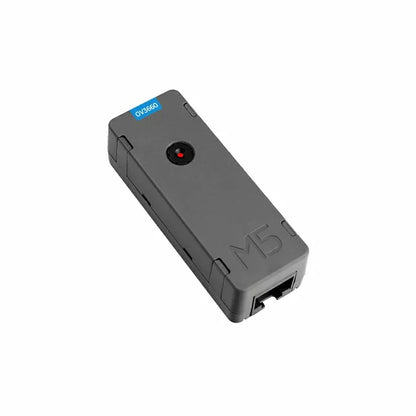

M5Stack PoE Camera with Wi-Fi (OV3660)

Description

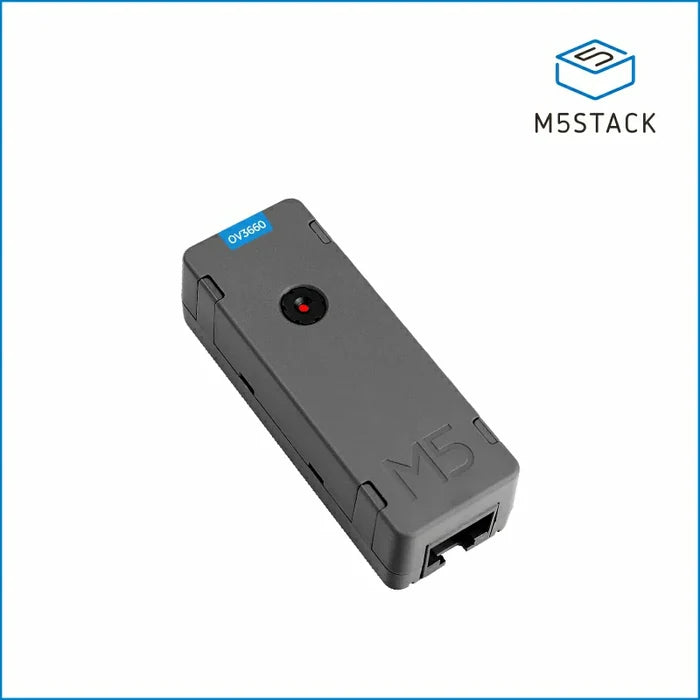

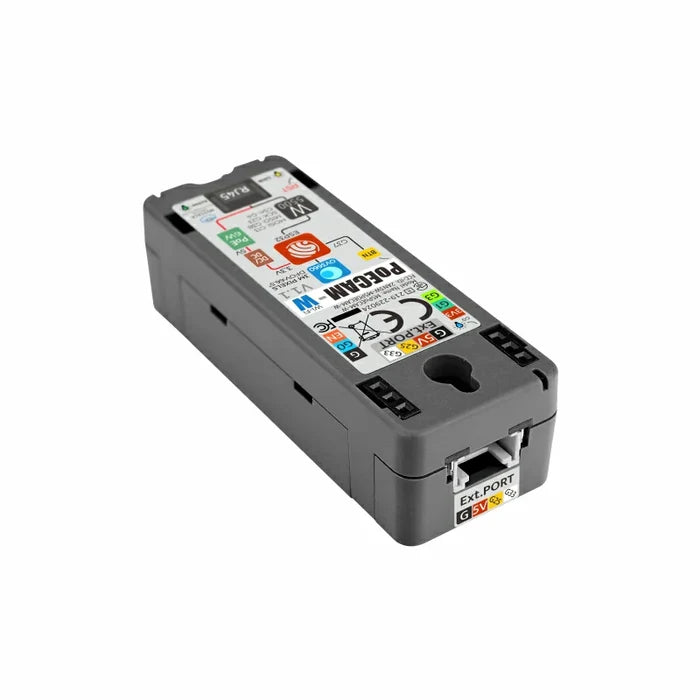

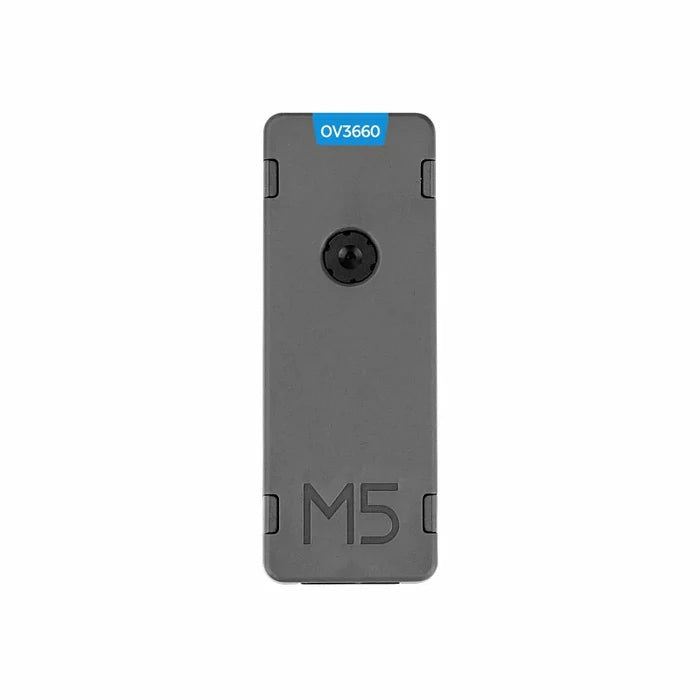

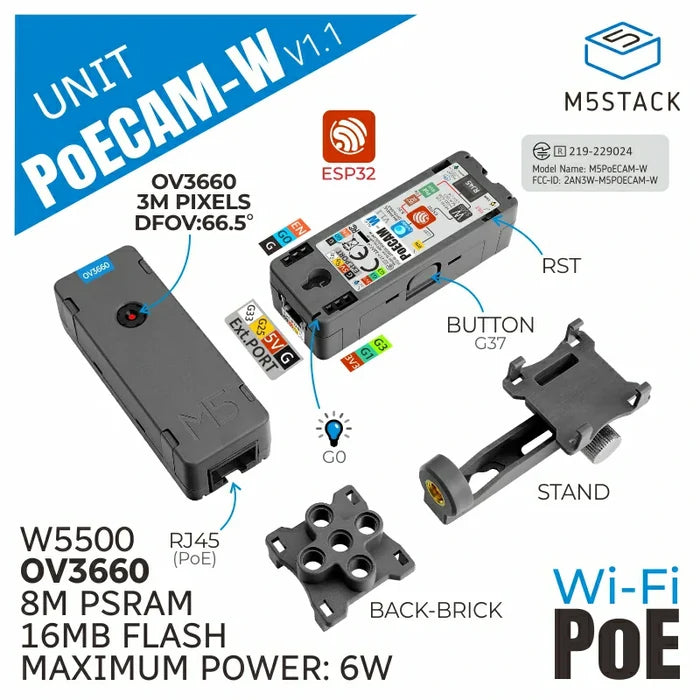

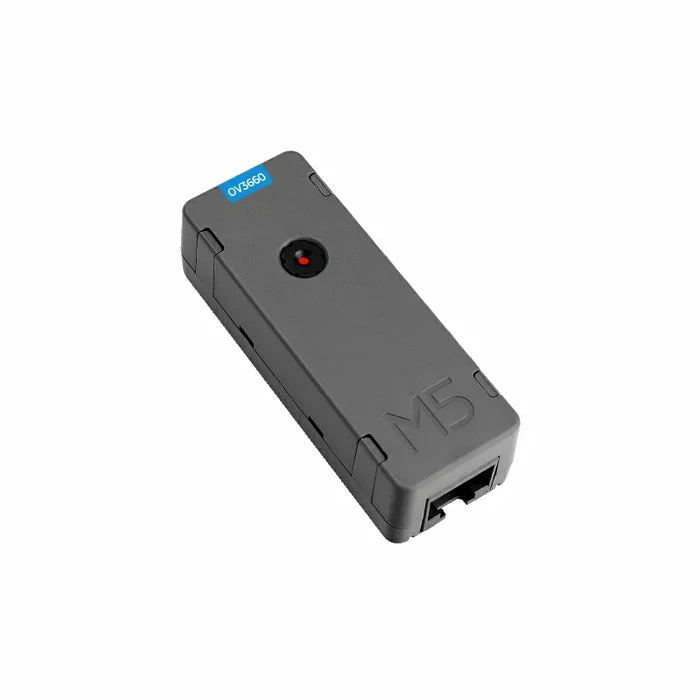

Unit PoE CAM-W v1.1 is a programmable PoE camera based on the “ESP32+W5500” solution, equipped with a built-in 3MP OV3660 image sensor featuring a 66.5° field of view, and integrating PoE (Power over Ethernet, max power consumption 6W) and Wi-Fi functions. It features 16MB Flash and 8MB PSRAM, with a reserved program download interface. This camera is equipped with abundant interfaces and functional modules, including a button (G37), LED indicator (G0), Grove interface (EXT_PORT), and expansion IO pins, along with a camera mounting clip and LEGO-compatible clamp. Suitable for image monitoring, remote acquisition, smart home, industrial automation, and other fields.

Features

• Built-in ESP32-D0WDQ6-V3 (supports 2.4G Wi-Fi)
• 3MP camera OV3660
• Ethernet chip W5500
• LAN speed up to 10M or 100M (depending on the provided connection)
• PoE IEEE802.3 AF standard (max power 6W)
• Built-in LED indicator

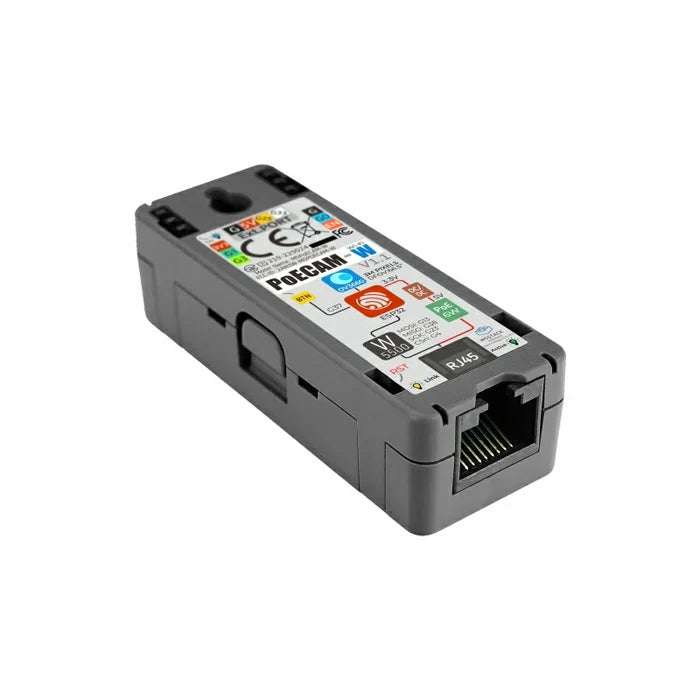

• Standard RJ45 Ethernet interface

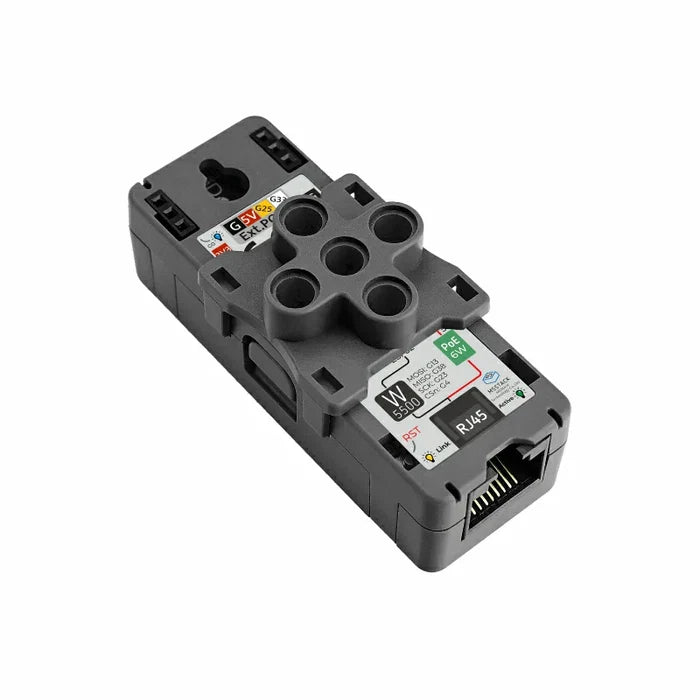

• Compatible with standard LEGO interface and comes with camera mount
• Development Platform: Arduino, ESP-IDF

Includes

• 1 x Unit PoE CAM-W v1.1

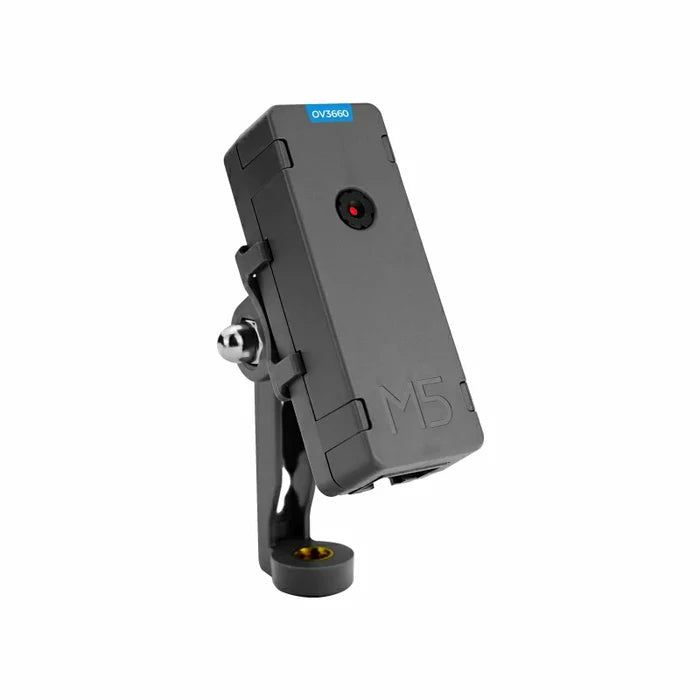

• 1 x Camera Mounting Clip
• 1 x LEGO-Compatible Clip

Applications

• Warehouse monitoring
• Timed photography
• Machine vision
• Smart home monitoring
