Hall Sensor

Hall Sensor

✅ Made In USA

✅ Quick Delivery

✅ Cruelty Free

 (88 Reviews)
$1.94
$1.94 $2.90
SAVE 33% Sold out

add_shopping_cart

-

Ordered

local_shipping

- - -

Order Ready

redeem

- - -

Delivered

Hall Sensor by Waveshare - The Pi Hut

Hall Sensor

$1.94
$1.94 $2.90
SAVE 33% Sold out

Hall sensors are used to detect and measure magnetic fields - the output signal level is proportional to the magnetic field intensity.

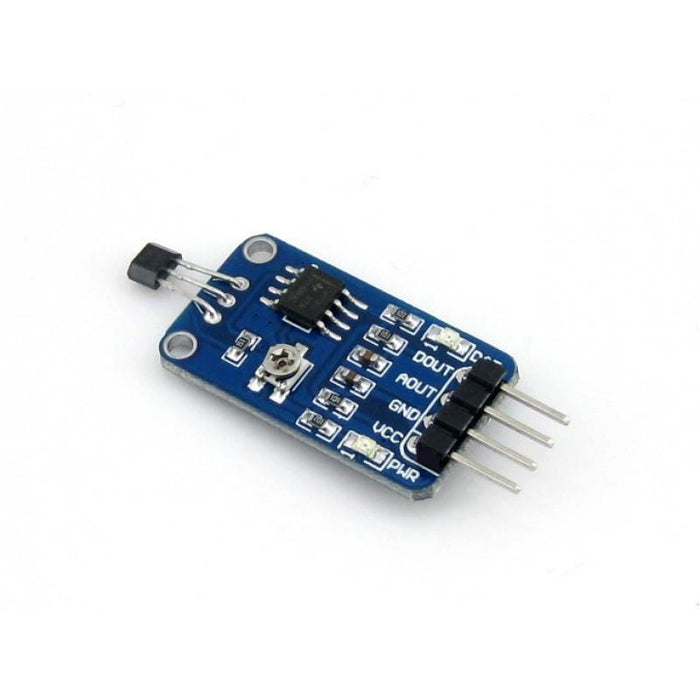

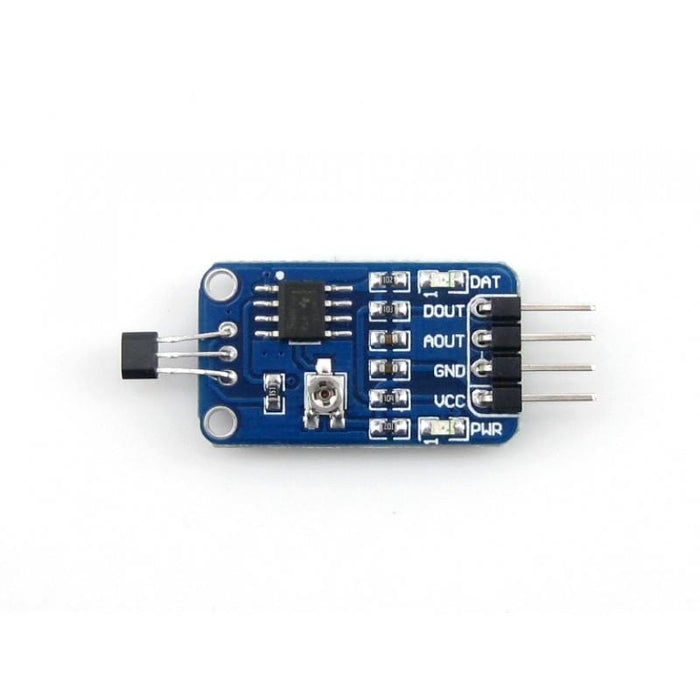

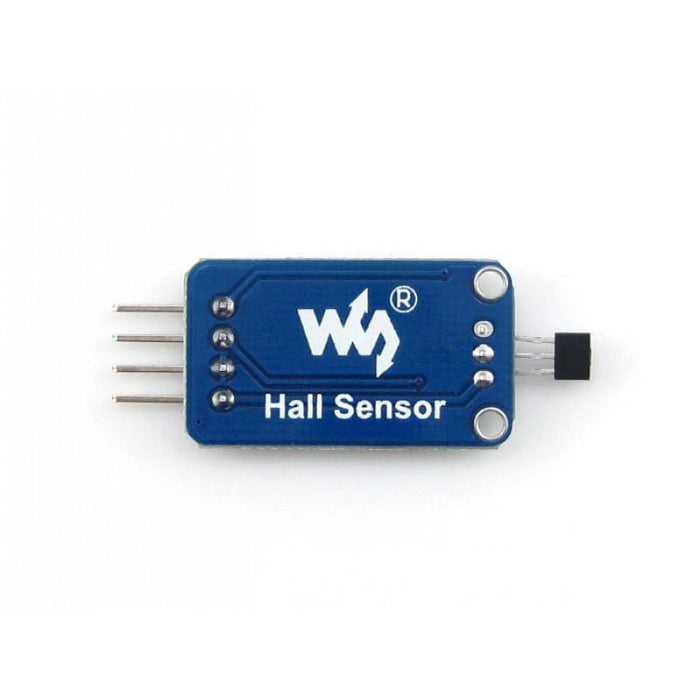

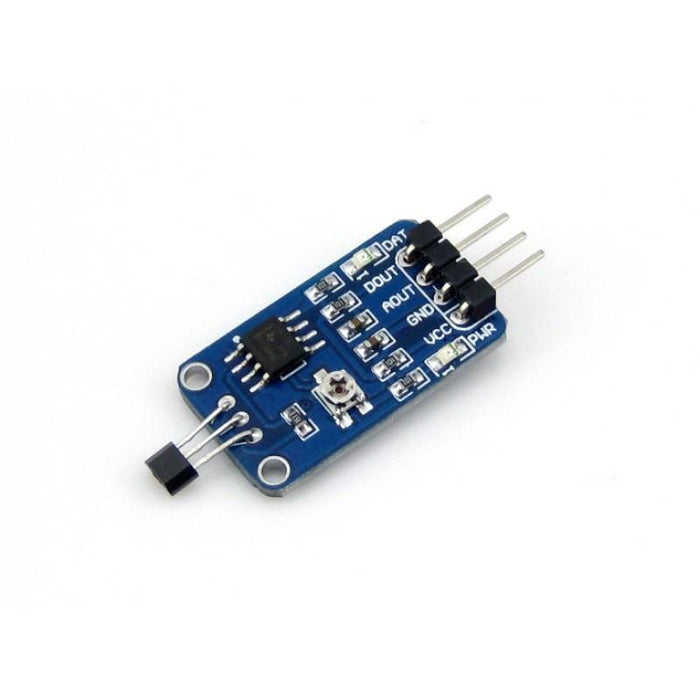

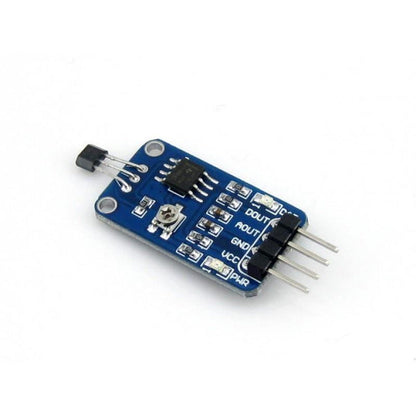

This Hall Sensor from Waveshare uses an LM393 wide-range voltage comparator and features adjustable sensitivity and a signal output indicator LED.

Comes with a 4-pin jumper cable for connecting to your development board.

Features

  • 49E hall sensor
  • Features a wide-range voltage comparator (LM393)
  • Adjustable sensitivity
  • Signal output indicator
  • Male pins pre-soldered

Resources

  • Product Wiki

How to Use

In the case of working with an MCU:

  • VCC ↔ 2.3V ~ 5.3V
  • GND ↔ power supply ground
  • AOUT ↔ MCU.IO (analog output)
  • DOUT ↔ MCU.IO (digital output)

Package Contents

  • 1x Hall Sensor Module
  • 1x 4-pin cable

Specifications

  • Power: 2.3V ~ 5.3V
  • Dimensions: 27.0mm * 15.5mm
  • Mounting holes size: 2.0mm (M2)
