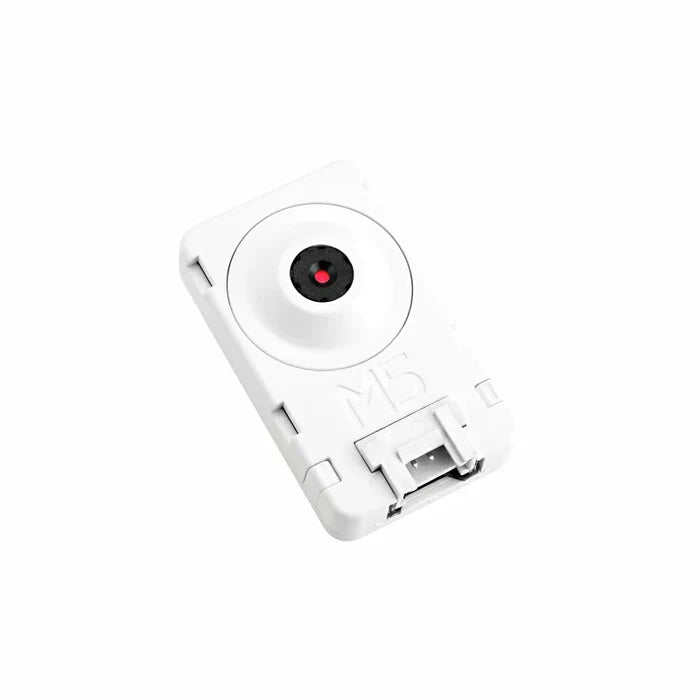

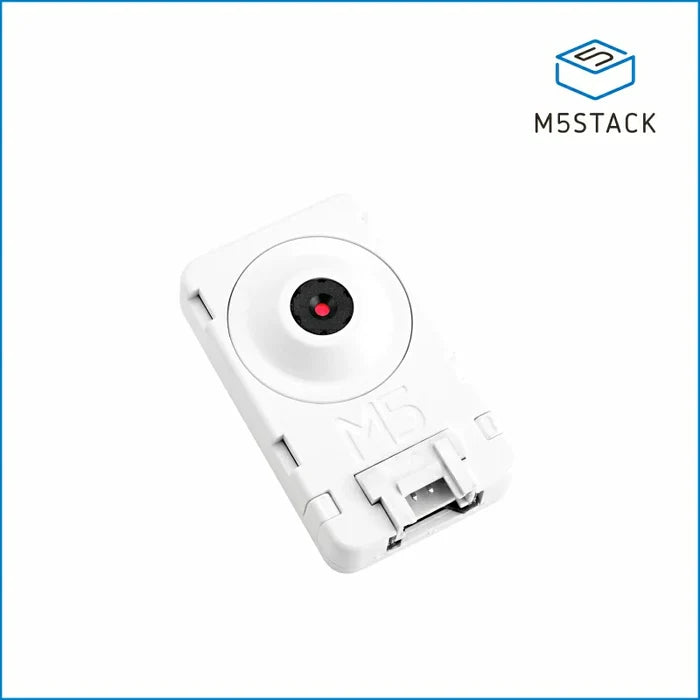

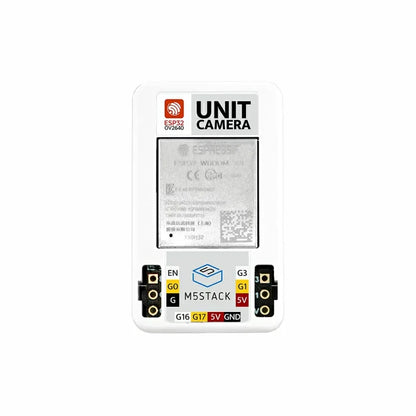

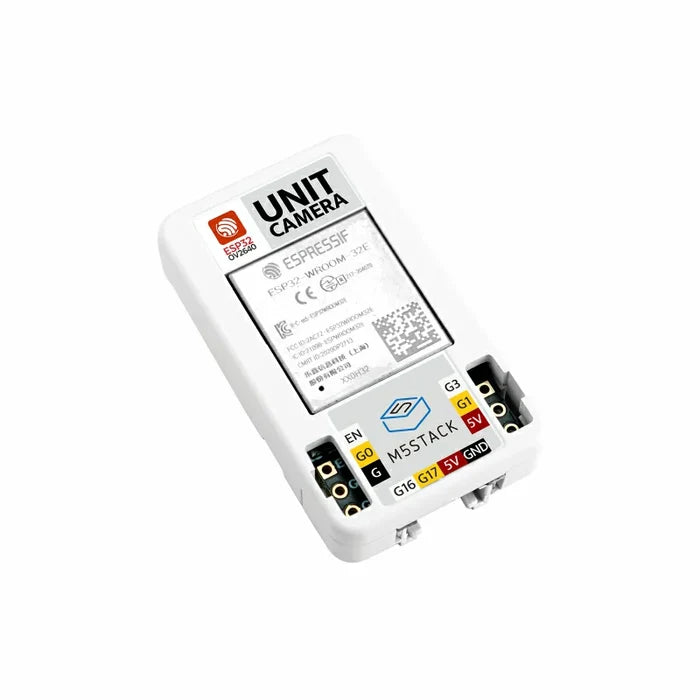

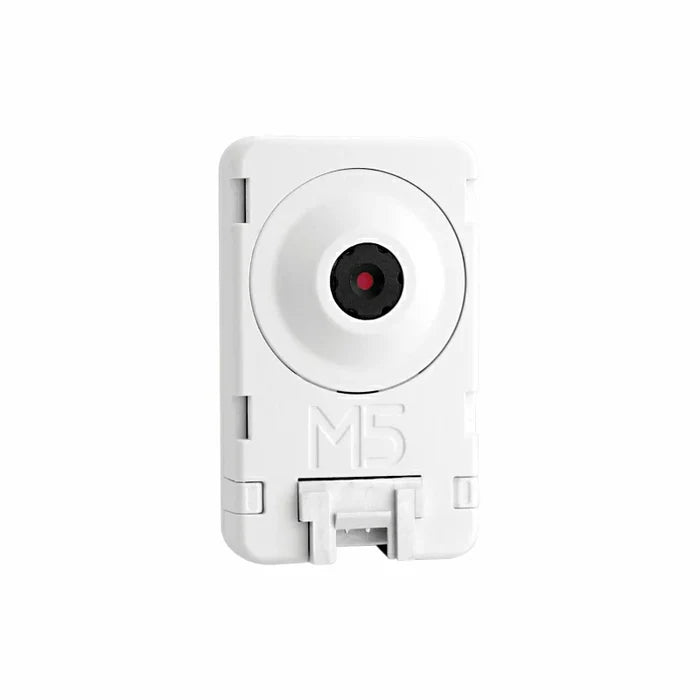

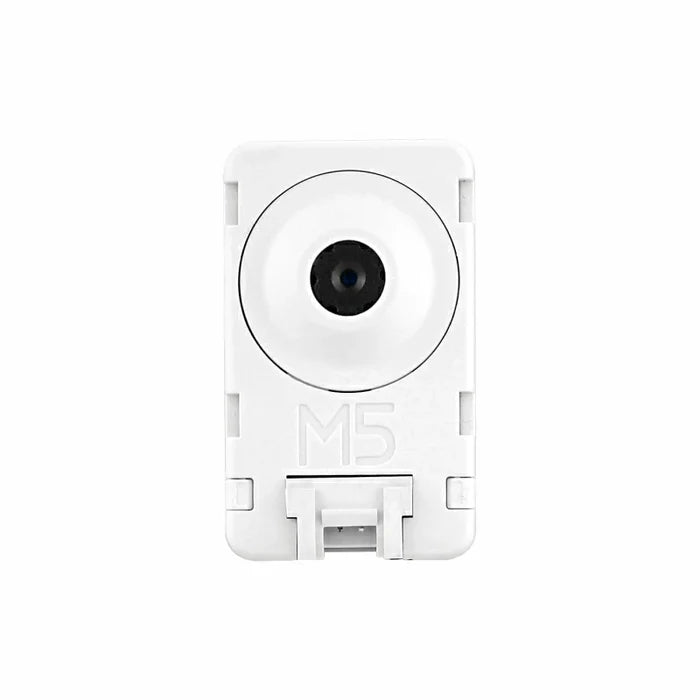

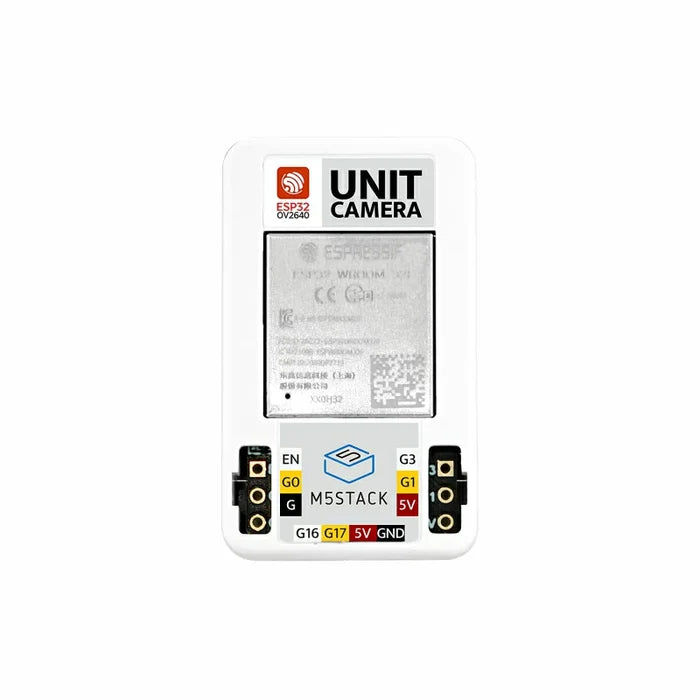

[EOL] Unit Cam Wi-Fi Camera with Enclosure (OV2640)

Description

Unit Camera is a cost-effective WiFi camera launched by M5Stack, featuring the ESP32-WROOM-32E control core and a 2MP image sensor (OV2640) solution. The design is simple, with no unnecessary peripherals. The factory software integrates image transmission firmware, providing interfaces for image data acquisition and image parameter adjustments (such as white balance, exposure, gain, size, etc.). Users can directly obtain image data and interact with the camera via UART or WiFi. It supports UIFlow graphical programming, allowing users to use it out of the box without development. Additionally, the reserved program download interface enables users to easily update or customize the firmware to enhance functionality and performance. The camera also comes with a mounting clip, making it easy to fix in the desired position. Its compact design and high cost-effectiveness make it suitable for various wireless camera application scenarios.

Features

• ESP32 control core
• Simplified design
• 2MP camera (OV2640)
• UART communication (supports image data acquisition, image parameter adjustment, etc.)
• WiFi image transmission
• Programmable LED indicator (blue)
• Programming platforms: ESP-IDF/Arduino/UIFlow

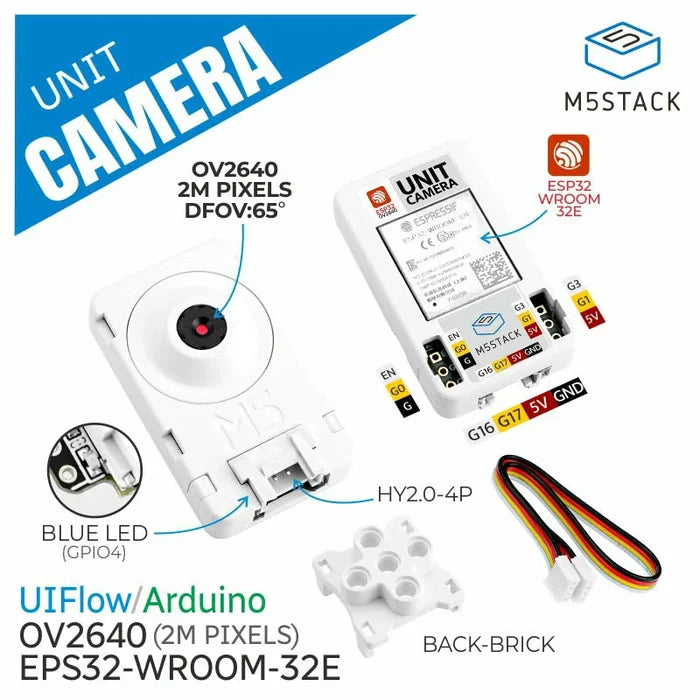

Includes

• 1 x Unit Camera
• 1 x HY2.0-4P Grove cable (20cm)
• 1 x Camera mounting clip (Lego compatible)

Applications

• Home security
• Smart home
• Industrial monitoring
• Agricultural monitoring
• Education and research
• Pet monitoring

Specifications
