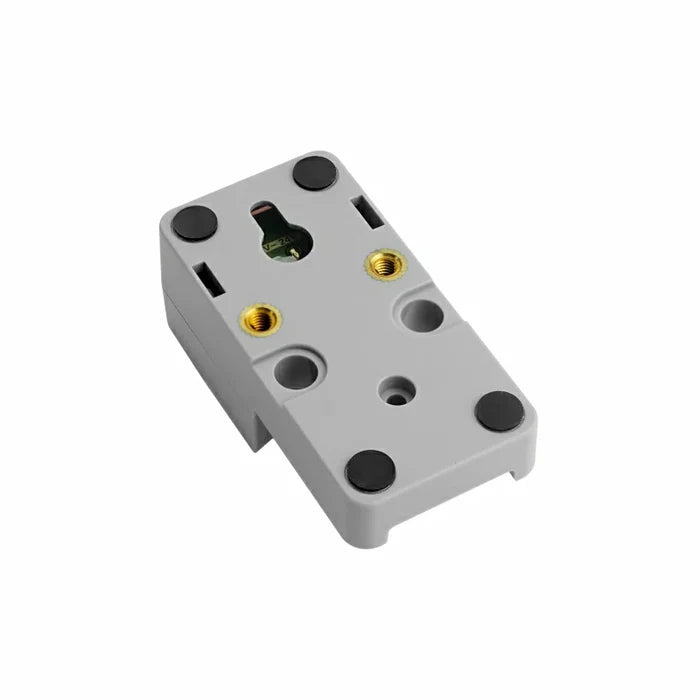

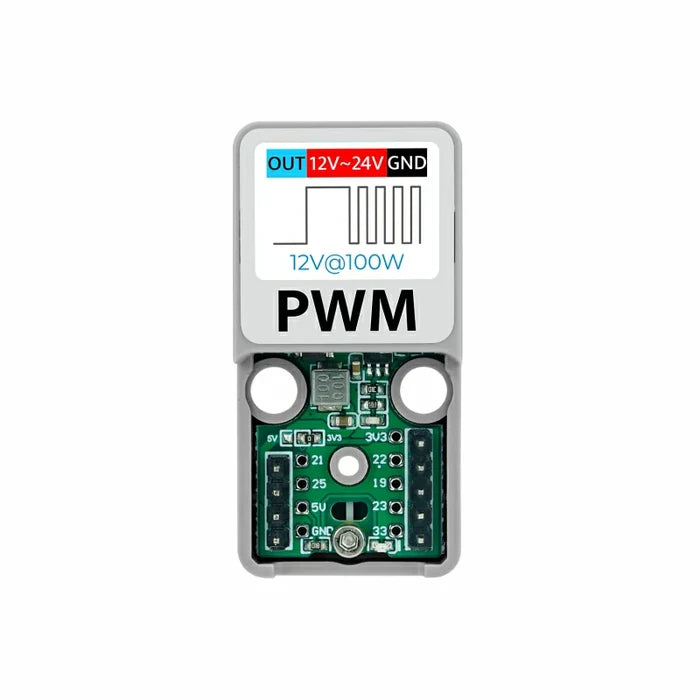

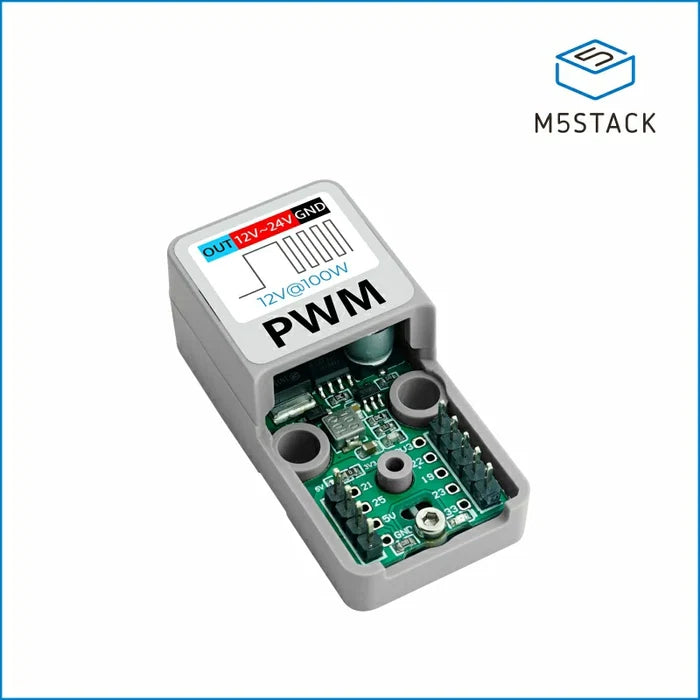

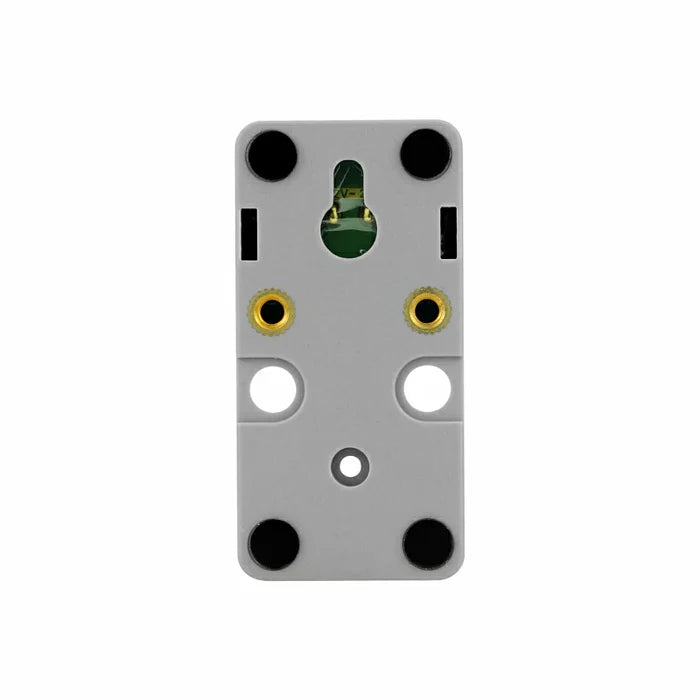

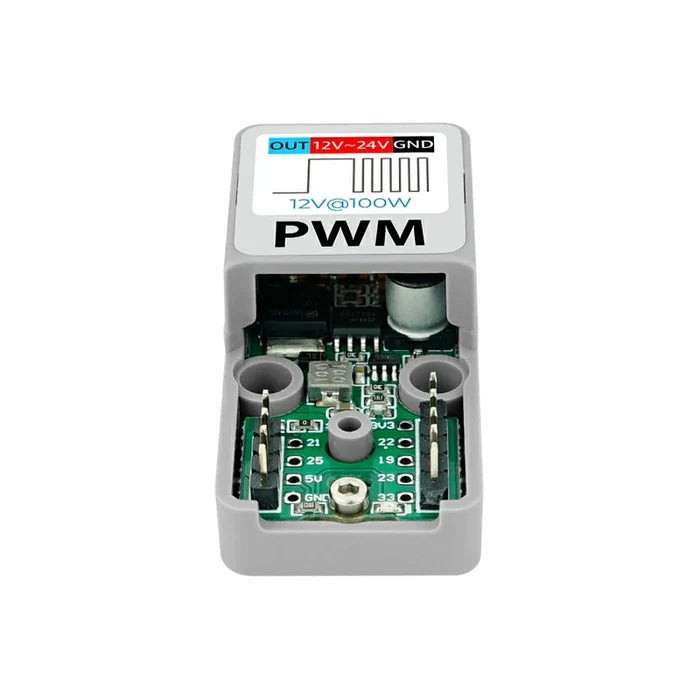

ATOMIC PWM Base (EG27324)

Description

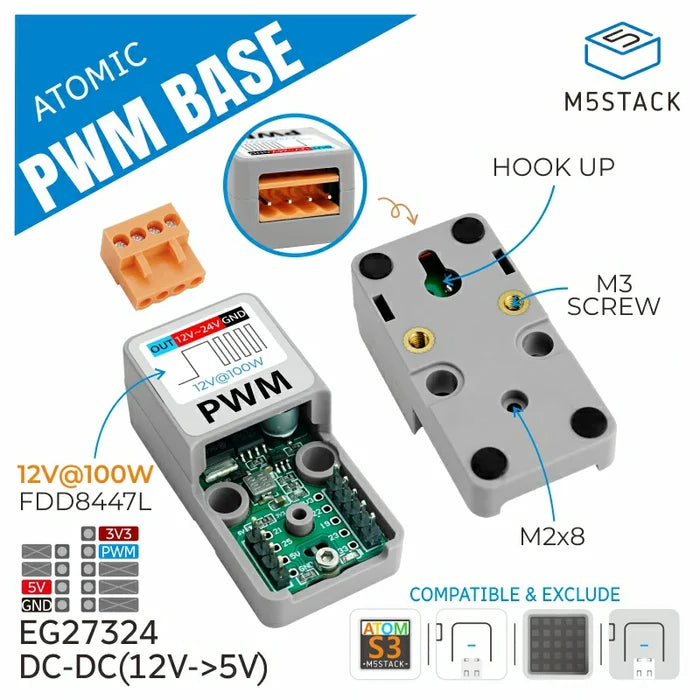

Atomic PWM Base is a single-channel PWM adjustable DC driver compatible with the Atom series hosts. It supports DC 12 ~ 24V power input and achieves output signal duty cycle adjustment through built-in MOSFET switch control, with a maximum load capacity of 12V@100W. The built-in DC-DC step-down circuit allows the input power to be used for load driving while simultaneously powering the entire device, making application deployment more convenient. Combined with the built-in Wi-Fi function of the Atom series controllers, it enables remote control functionality, making it suitable for applications such as high-power DC motor PWM speed control and industrial heating wire control.

Features

• Compatible with Atom-Lite/Atom-Matrix/AtomS3/AtomS3-Lite
• Single-channel low-latency PWM signal output
• High-power MOSFET, output capability of 12V@100W
• Reserved 1xGROVE expansion interface
• Built-in DC-DC (12V->5V) conversion circuit
• Integrated design with a protective casing
• Development platforms: Arduino, UIFlow

Includes

• 1 x Atomic PWM Base

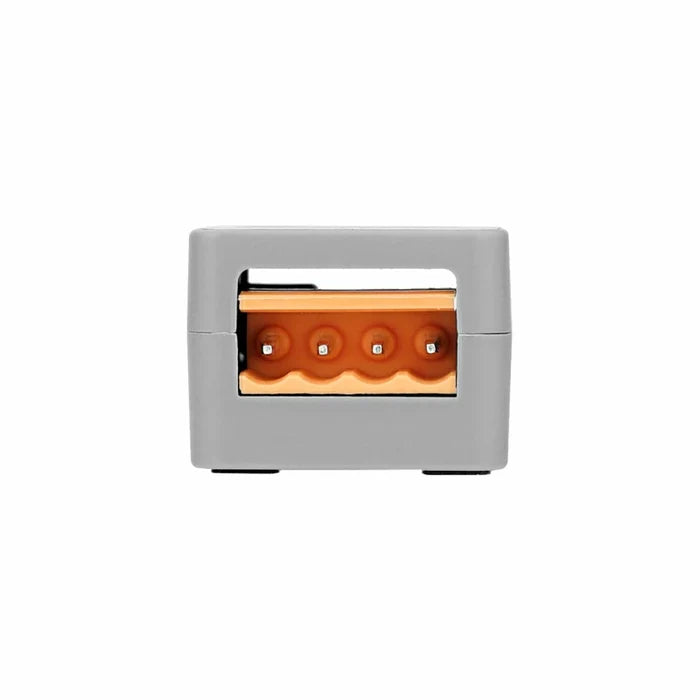

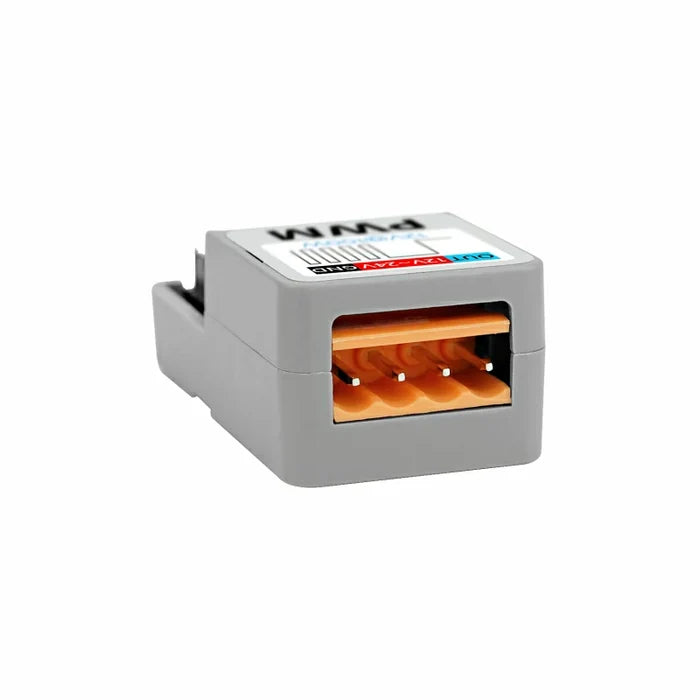

• 1 x HT3.96-4P Terminal

Applications

• DC motor control
• LED brightness adjustment
• Power control
• Temperature control
