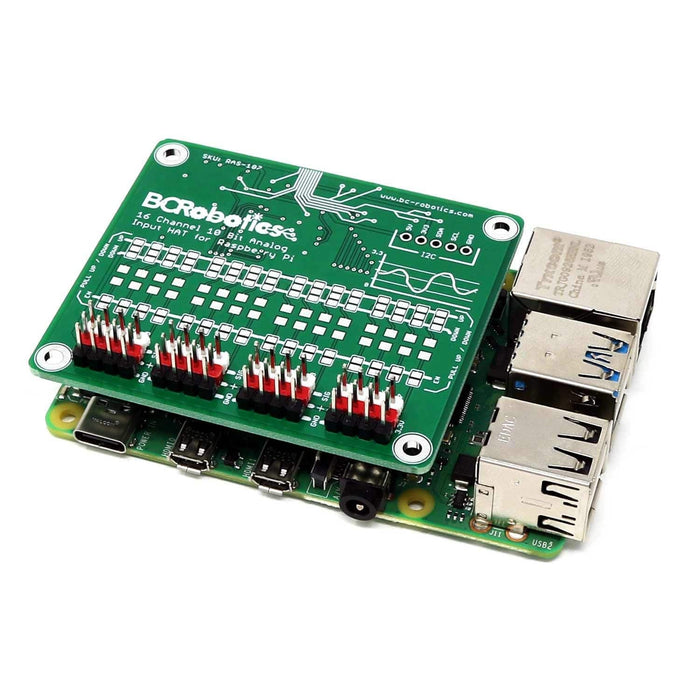

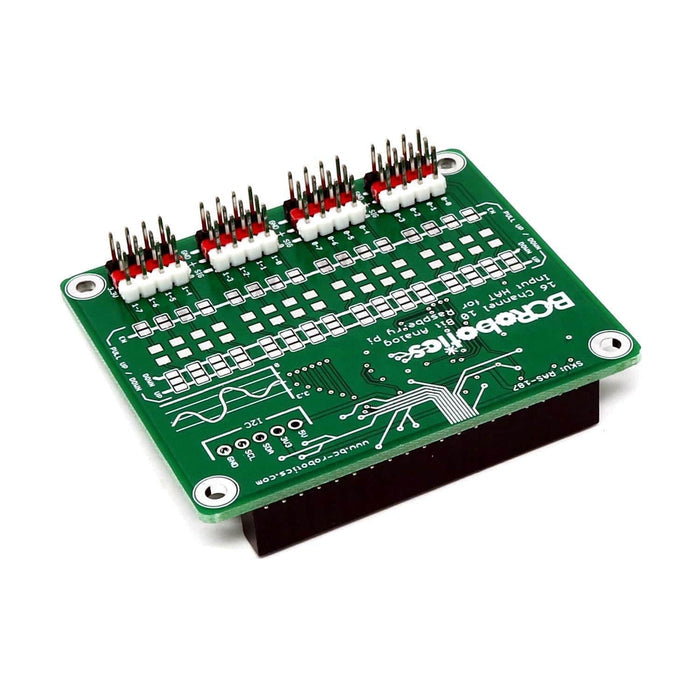

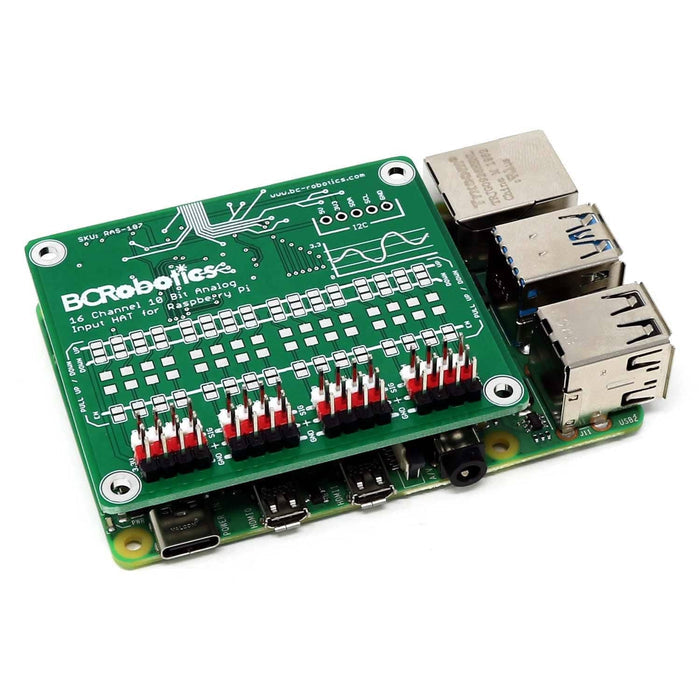

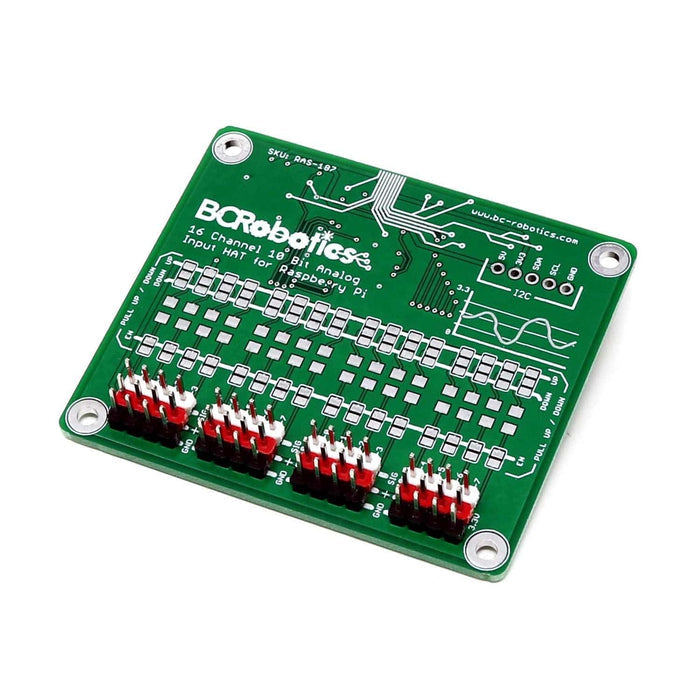

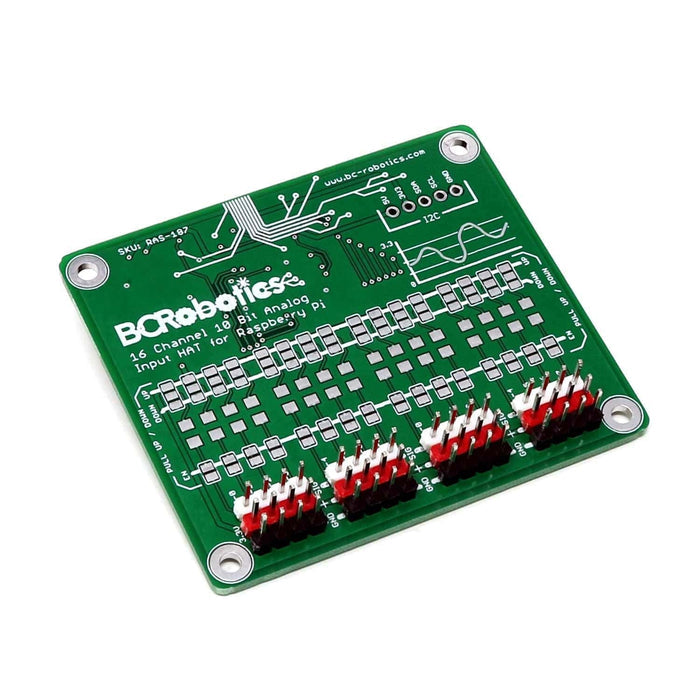

16 Channel Analog Input HAT – ADC for Raspberry Pi

Need an easy way to get a bunch of analog signals into your Raspberry Pi? This 16 channel 10 bit analog input HAT is the solution!

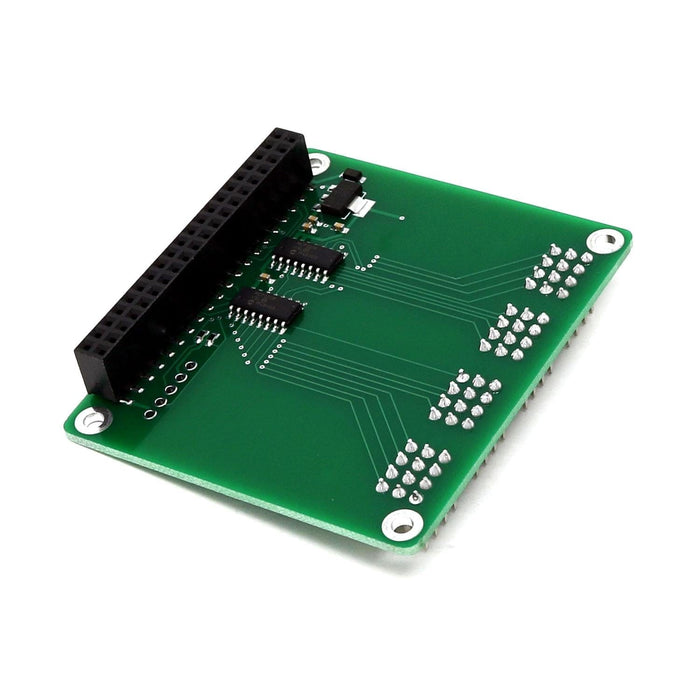

The board is simple at heart, a pair of MCP3008 analog to digital converters connected on the Raspberry Pi’s SPI bus. Need to create a voltage divider on the input? Each channel has room for a standard 1206 SMD chip resistor and a couple of solder jumpers to enable and set the resistor as a pull-up or pull-down; no wiring required!

This HAT is compatible with the most recent versions of the Raspberry Pi (including all versions of the Pi 4) and ships assembled with a 2×20 header already attached.

Colour-coded headers are also pre-installed for each of the 16 analog inputs. Just plug it in and connect your sensors, no soldering necessary!

Note: Raspberry Pi not included
