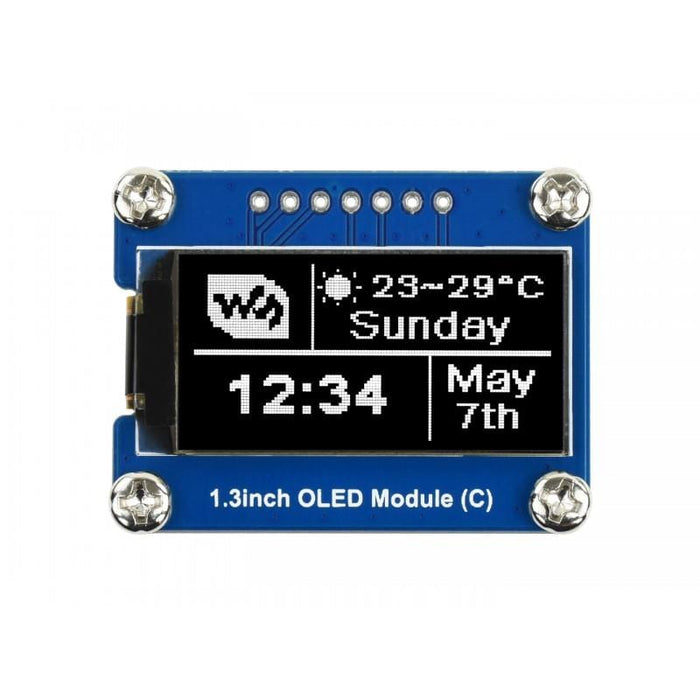

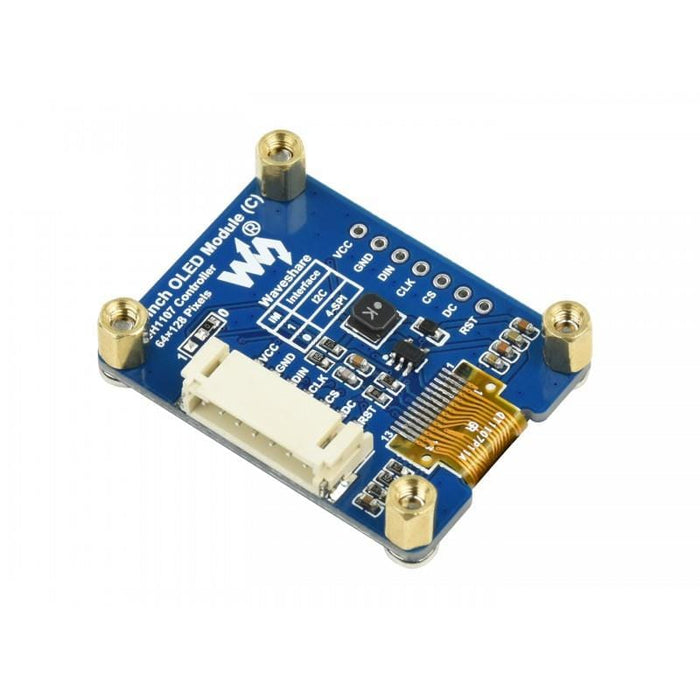

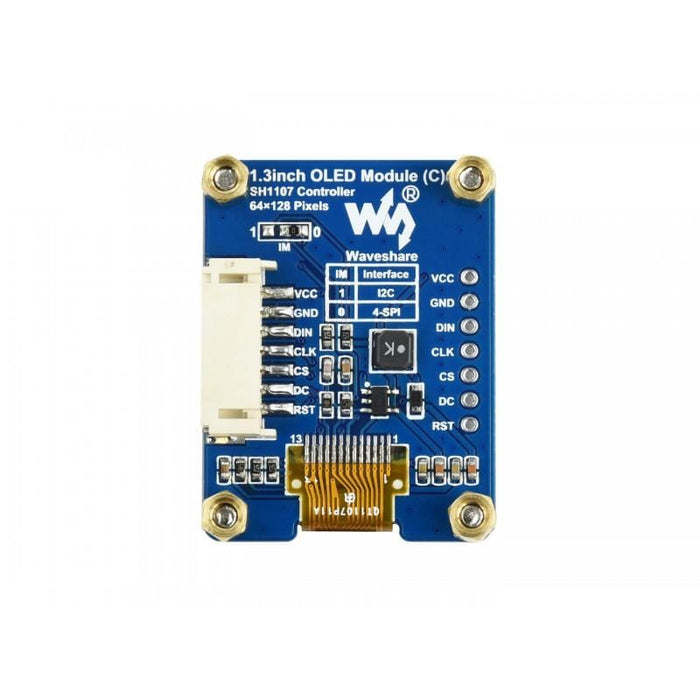

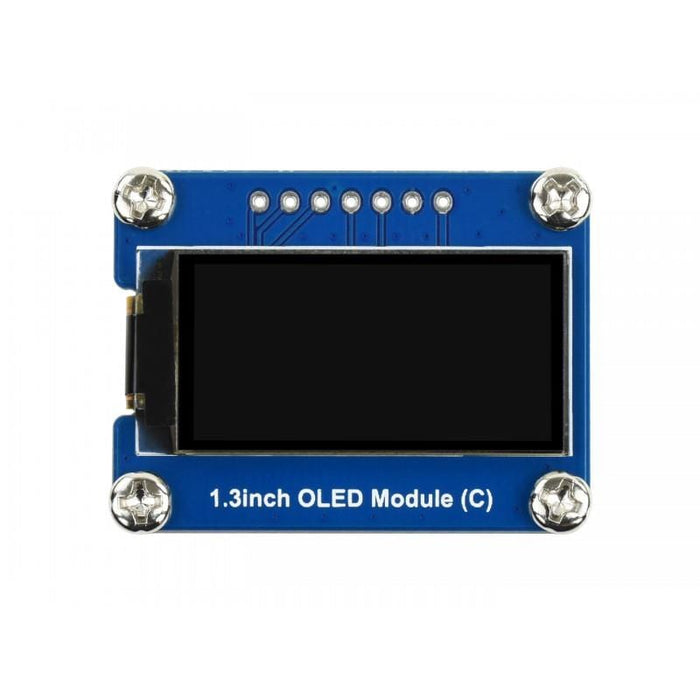

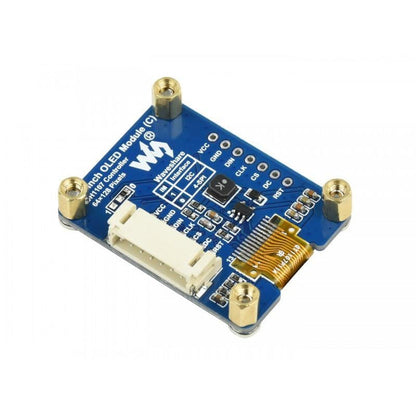

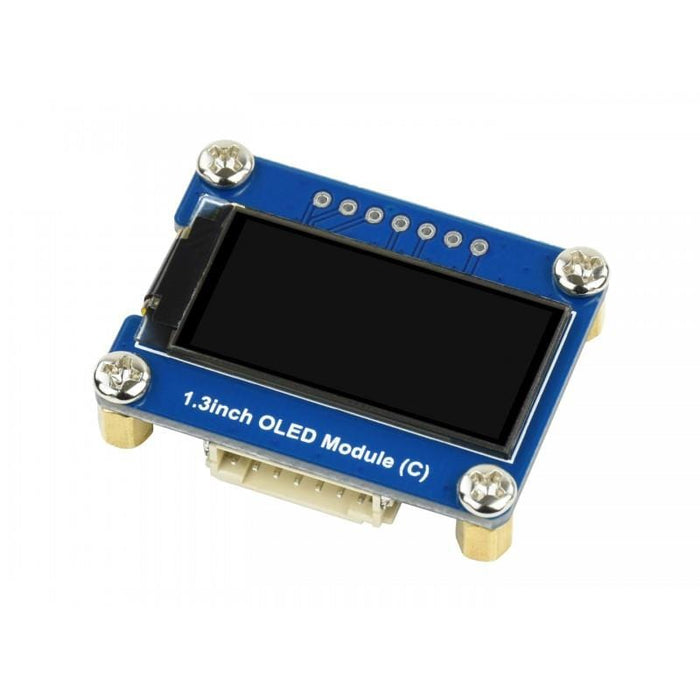

1.3" OLED Display Module (64×128)

1.3" OLED Display Module (64×128)

✅ Made In USA

✅ Quick Delivery

✅ Cruelty Free

 (88 Reviews)
$5.31
$5.31 $7.70
SAVE 31% Sold out

add_shopping_cart

-

Ordered

local_shipping

- - -

Order Ready

redeem

- - -

Delivered

1.3" OLED Display Module (64×128) by Waveshare - The Pi Hut

1.3" OLED Display Module (64×128)

$5.31
$5.31 $7.70
SAVE 31% Sold out

This is a general OLED module for adding a small display to your project - great for robots, data monitors and more!

The module is 1.3" diagonal, 64x128 pixels, with an embedded controller offering both a 4-wire SPI and I2C interface for maximum compatibility.

The display comes with a PH2.0 7-pin 20cm cable for connecting to your microcontroller.

Features

  • 1.3" small form factor
  • 64x128 resolution
  • Adopts both a 4-wire SPI and I2C interface - better compatibility with a high transmission rate
  • Online development resources and manual (examples for Raspberry Pi)

Wiring Examples

1.3" OLED Raspberry Pi Wiring Example

1.3" OLED Arduino Wiring Example

Resources

  • Product Wiki

Package Contents

  • 1x 1.3inch OLED Module (C)
  • 1x PH2.0 7-pin 20cm cable

Specifications

  • Driver: SH1107
  • Interface: 4-wire SPI, I2C
  • Resolution: 64x128 pixels
  • Operating voltage: 3.3V

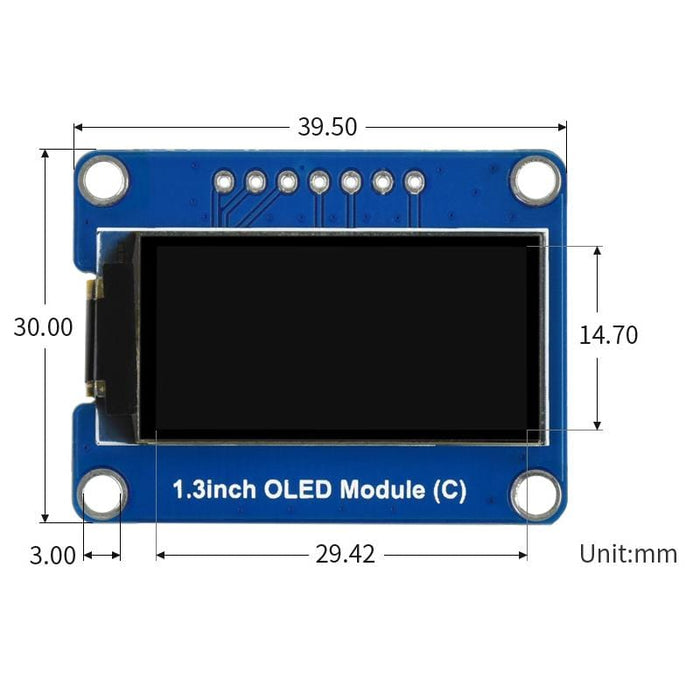

  • Display Size: 14.70x29.42mm
  • Dimensions: 30.0x39.5mm
  • Pixel Size: 0.15x0.15mm
